alx
All your aircraft
in one sim for
complete training

With the ALSIM ALX you can add up to 10 different flight model configurations to your training cycle. From Single Engine Piston with Analog & Glass over Multi Engine Piston, Light Turboprop and Light Jet as well as Light Jet and Medium Jet.

Start by selecting which flight models meet your training scenario the best.

Virtual Visit

Virtually experience the ALX

Explore the Cockpit / Enhance your experience with a VR Headset or VR Cardboard

Visit the ALX

ALX:
a blueprint
for Evolution

The ALX is many devices rolled into one, and this is no accident. Our development process is designed on an open platform, giving the flexibility to evolve and branch out from the original from 2008.

Our R&D teams work hand in hand with service teams and
customers to bring about a non-stop evolution of training features.

The result is software and hardware which keep up with the times
and mean you can easily retrofit your virtual fleet.

Videos

See the ALX in action

ALSIM ALX – Fire on board / Emergency procedure

ALSIM ALX – Our customer One Air

ALSIM ALX – 360° Experience

ALSIM ALX – Quick change of levers/power quadrants

ALSIM ALX – PBN and LPV ready

ALSIM ALX – From analog to glass cockpit in a click

ALSIM ALX – Instructor Station

ALSIM ALX – Airline FMGS replicas

ALSIM ALX – Fully simulated electrical system

ALSIM ALX – Commercial Airline Training

ALSIM HDVS – High Definition Visual System, 208° x 49° panoramic field of view (FOV)

ALSIM ALX – Commercial Aviation Training Video – Advanced Phase

ALSIM ALX – Simulator Setup

ALSIM ALX at Malta School of Flying

Testimonial

“ALSIM not only sold us a great device, but the company also took care of the entire qualification process of our FSTD, and took on the role of the simulator operator.
This way, we can concentrate on our core business: flight training.”

Patrick Fenech

Managing Director

MALTA SCHOOL OF FLYING, Malta

Certification

Available certifications for your field of training

EASA (FNPT II MCC)

FAA (AATD)

TC (FTD 2 – IR – MCC)

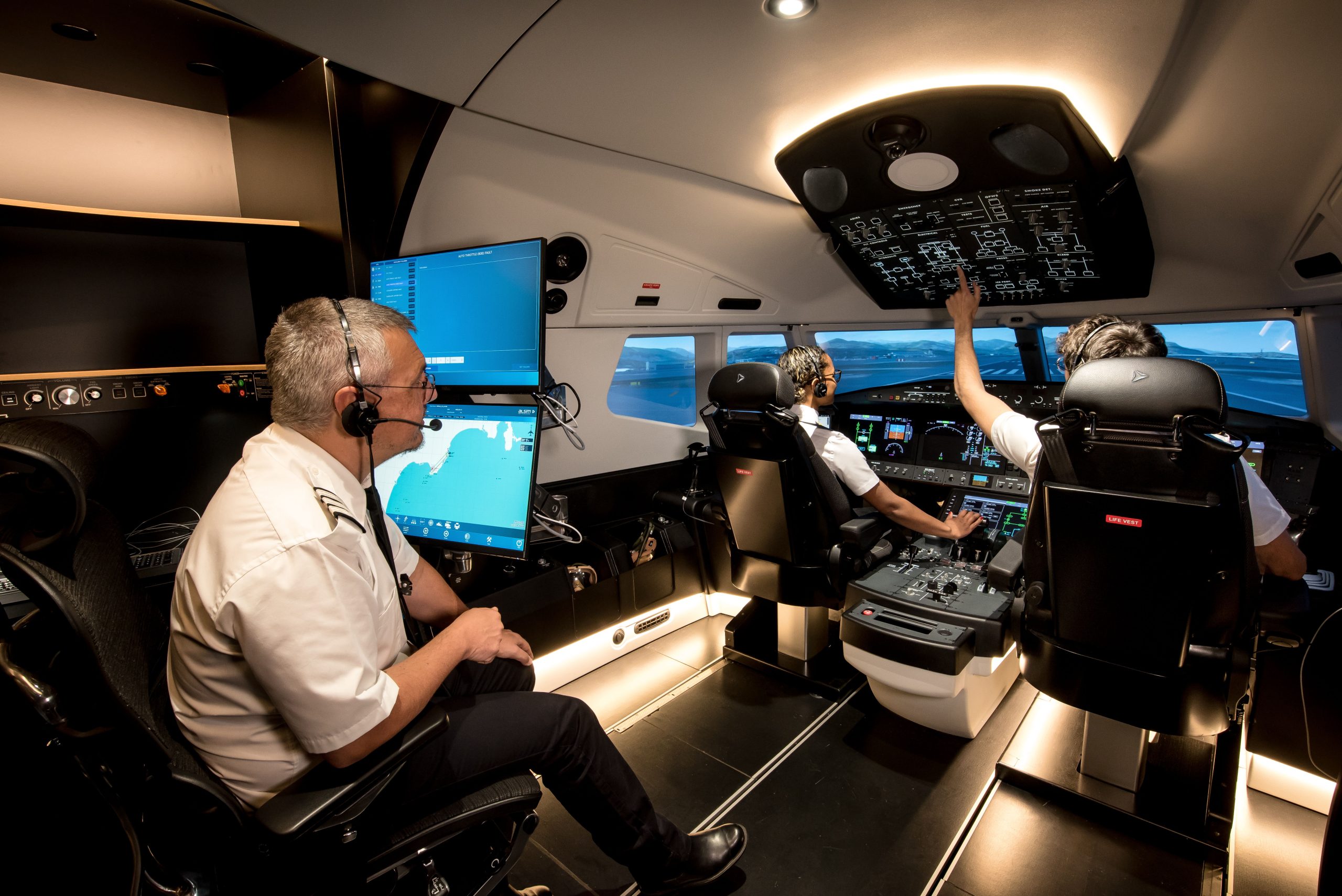

ALX Gallery

View image
View image
View image
View image
View image
View image
View image
View image
View image

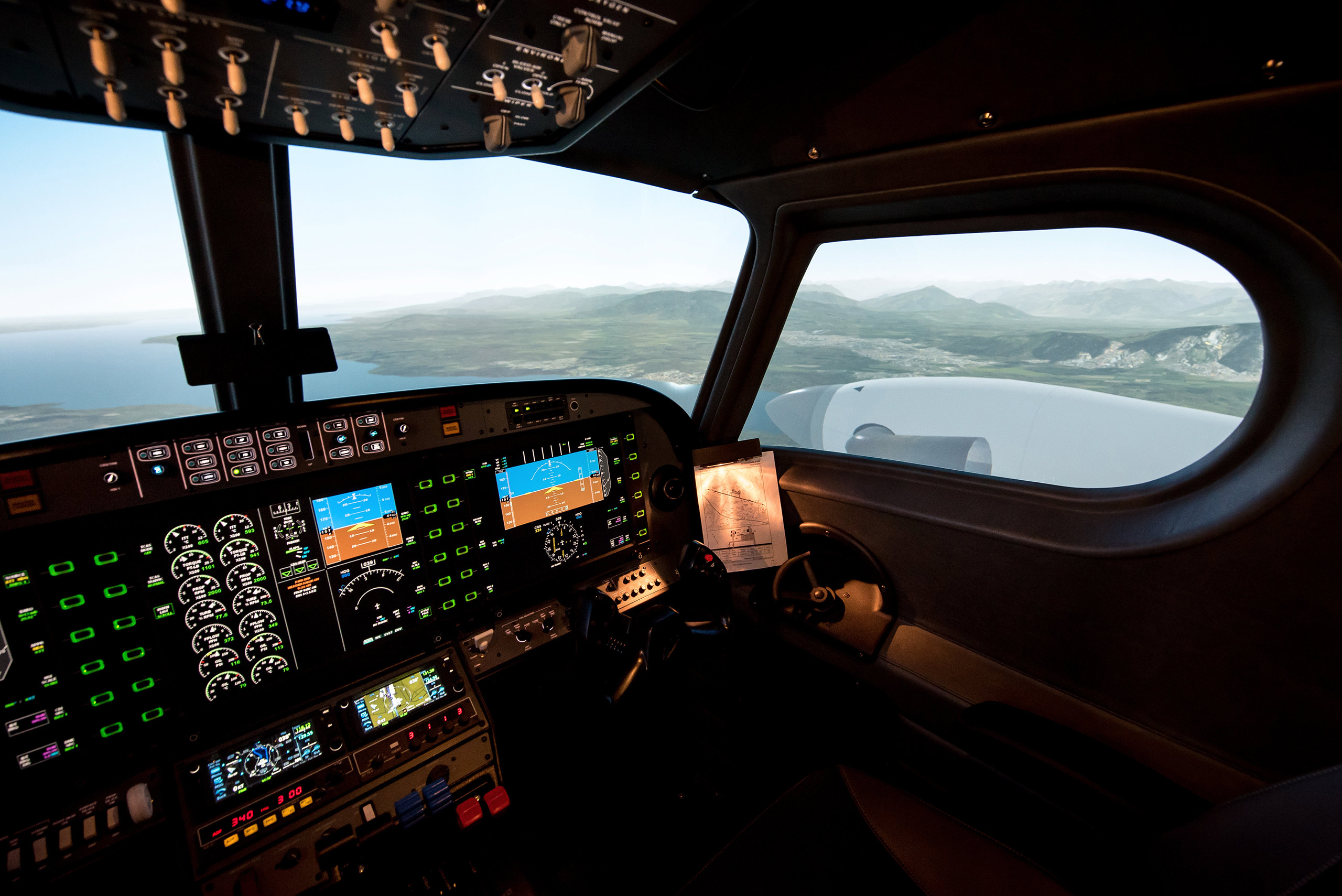

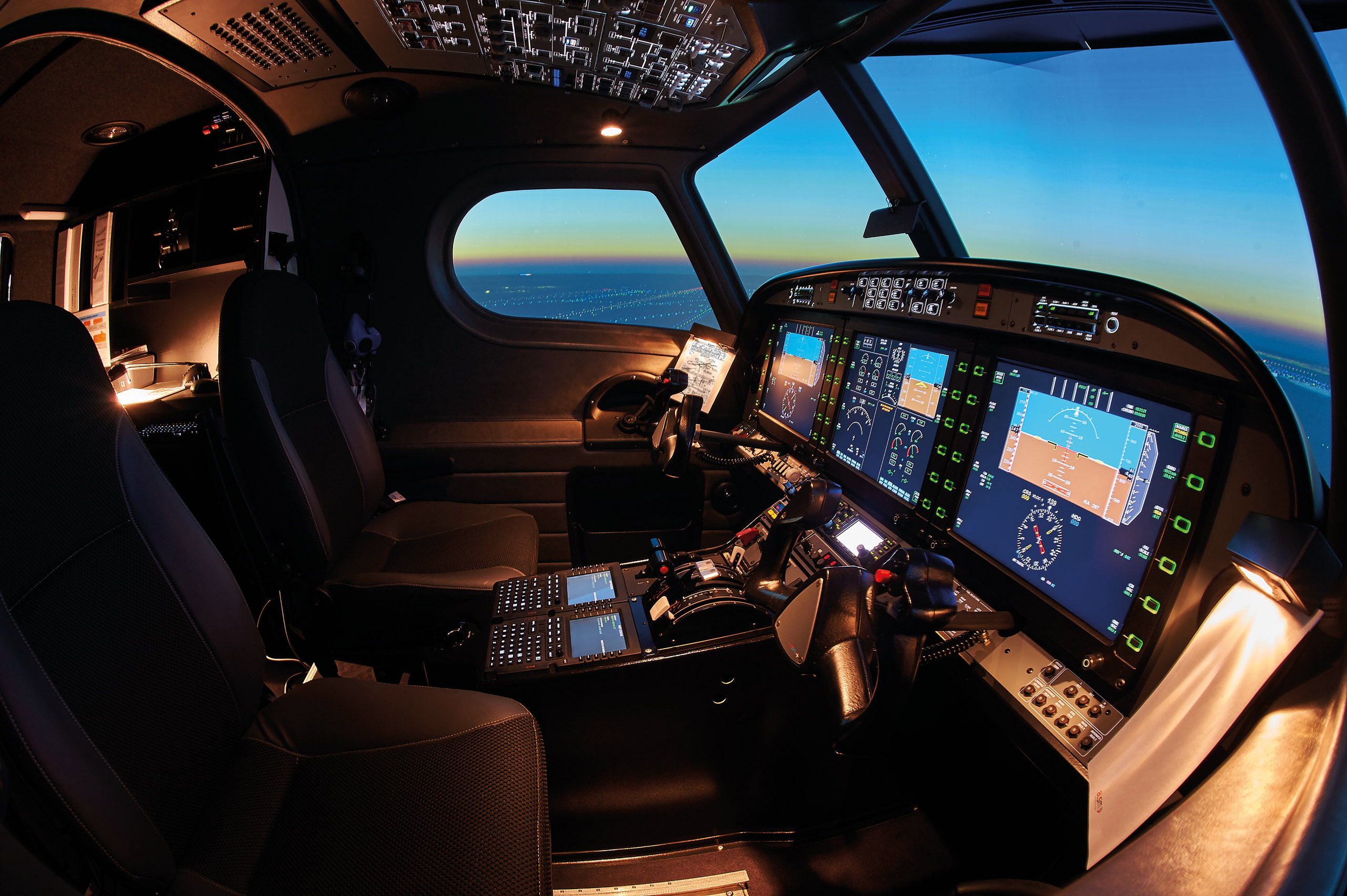

Cockpit

Discover the design of a cockpit which caters
for our full range of aircraft environments.

1Instrument Panel
2Multi Control Panel
3Control loaded yoke
4ALSIM Avionics / GTN650 – Dual GPS
5Quick Change Power Quadrant
6Dual FMS
7Overhead
8Breakers Panel
9Clipboard holder
10Tablet Holder
11Smoke machine
12Nose wheel steering
+

1Instrument Panel

The ALX provides you with large number of desired cockpit
displays required for your training. From the simple analog to
a complex glass configuration (as shown here).
Changeable on the fly by the instructor

2Multi Control Panel

The MCP controls the advanced autopilot and flight director as well as the yaw damper. The MCP features basic modes (ROLL, HDG, PITCH, VS, IAS, ALT, ALT CHG) and advanced modes (APPR, NAV, VNAV, LNAV).

3Control loaded yoke

Elevator and aileron flight controls. Also provides useful functions such as electrical pitch trim, chrono timer, push to talk, autopilot and flight director disconnection.

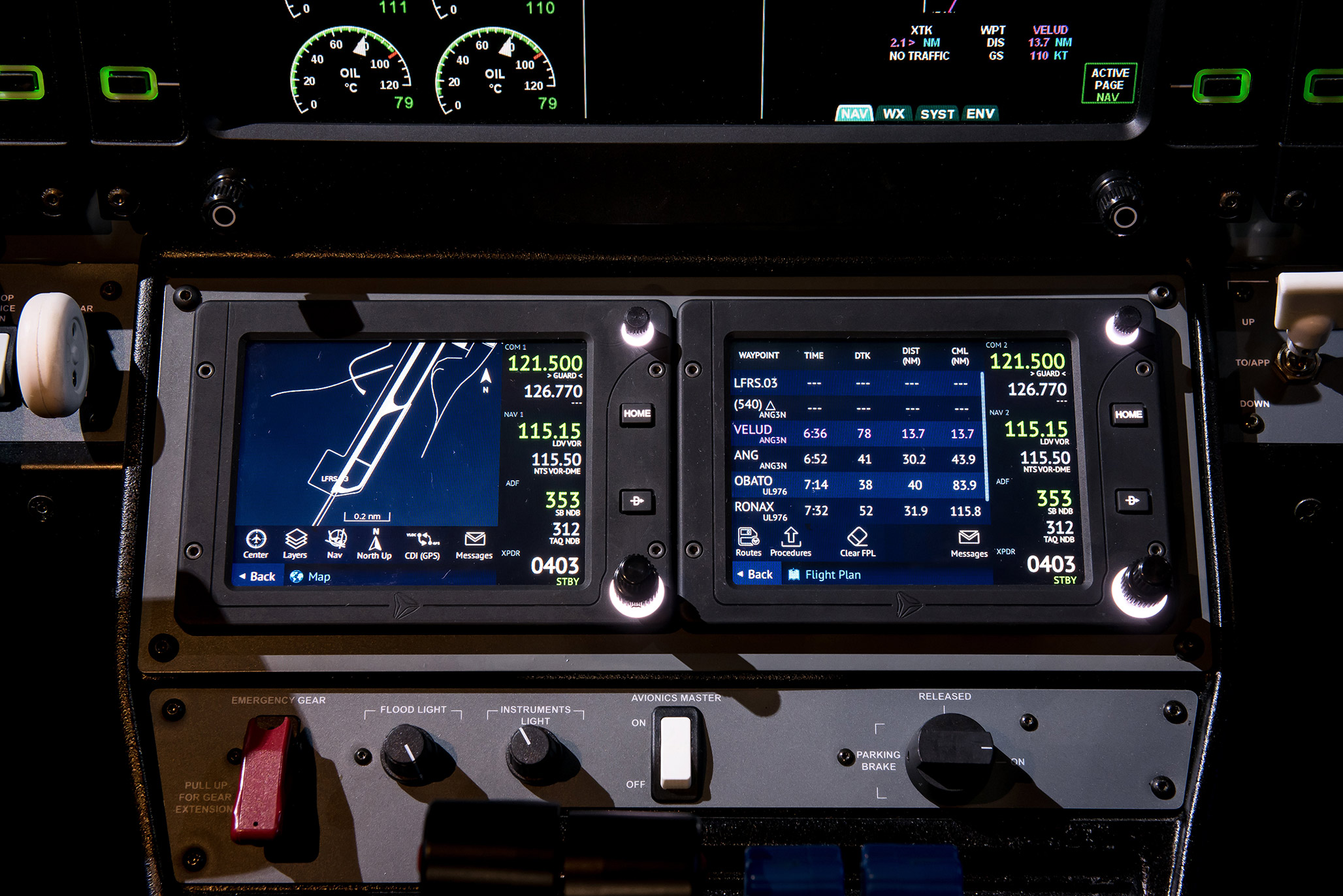

4ALSIM Avionics / GTN650 – Dual GPS

Standard: generic COM/NAV/GPS receivers with moving map display. Navigation database is included to perform VLOC/GPS navigation, flight plans and procedures.
Optional: Genuine Garmin® GTN™ 650 units.

5Quick Change Power Quadrant

Up to 3 power quadrant configurations are available for the ALX flight simulation experience. They can be switched simply within a few minutes.
Shown on the picture: A single power quadrant for all configurations (SEP, MEP and Turboprop) with manifold pressure, propeller pitch and mixture/condition and adjustable friction.

6Dual FMS

Generic FMC with MCDU allows the user to predict and manage flight lateral/vertical navigation according to environmental conditions and aircraft performances/limitations

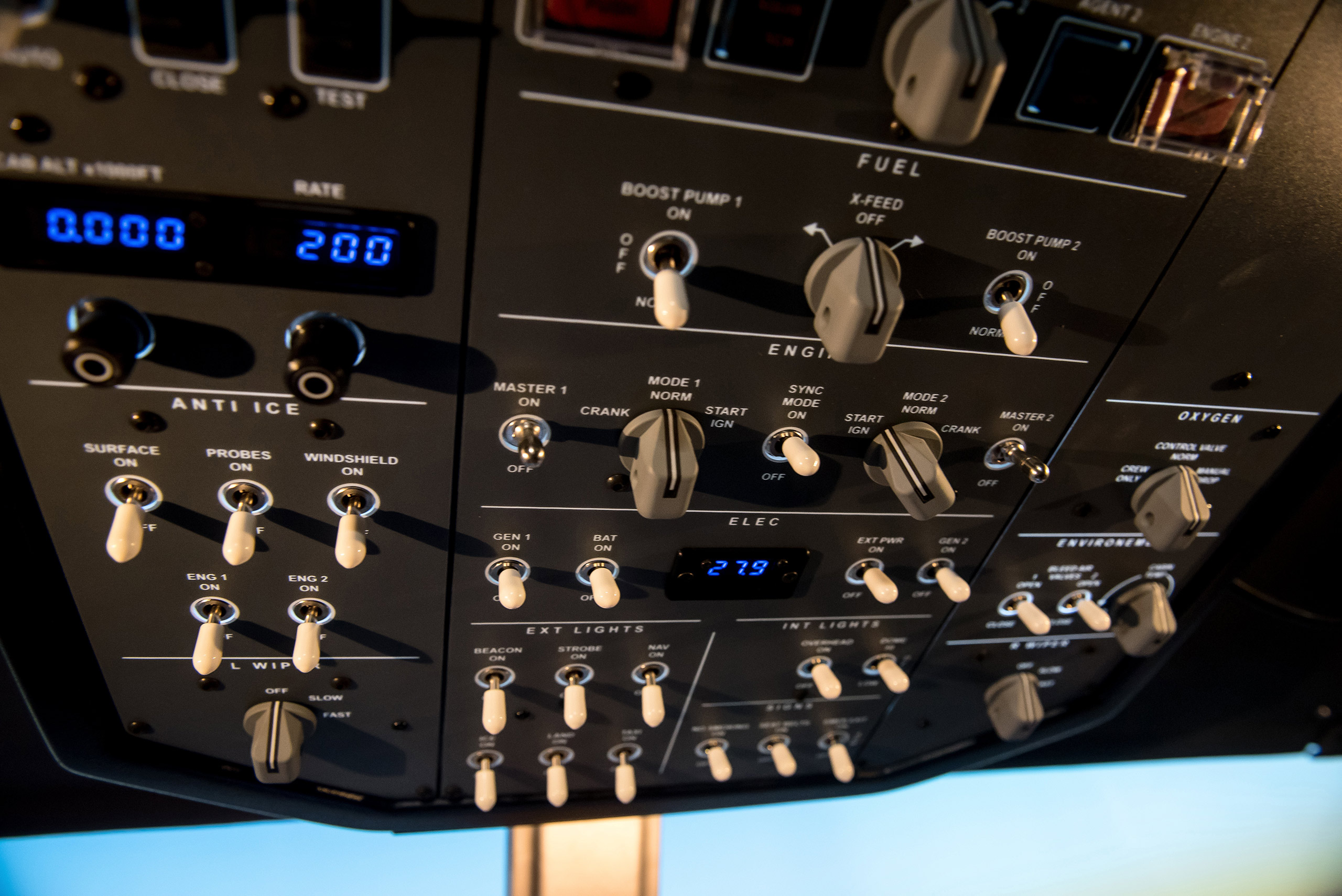

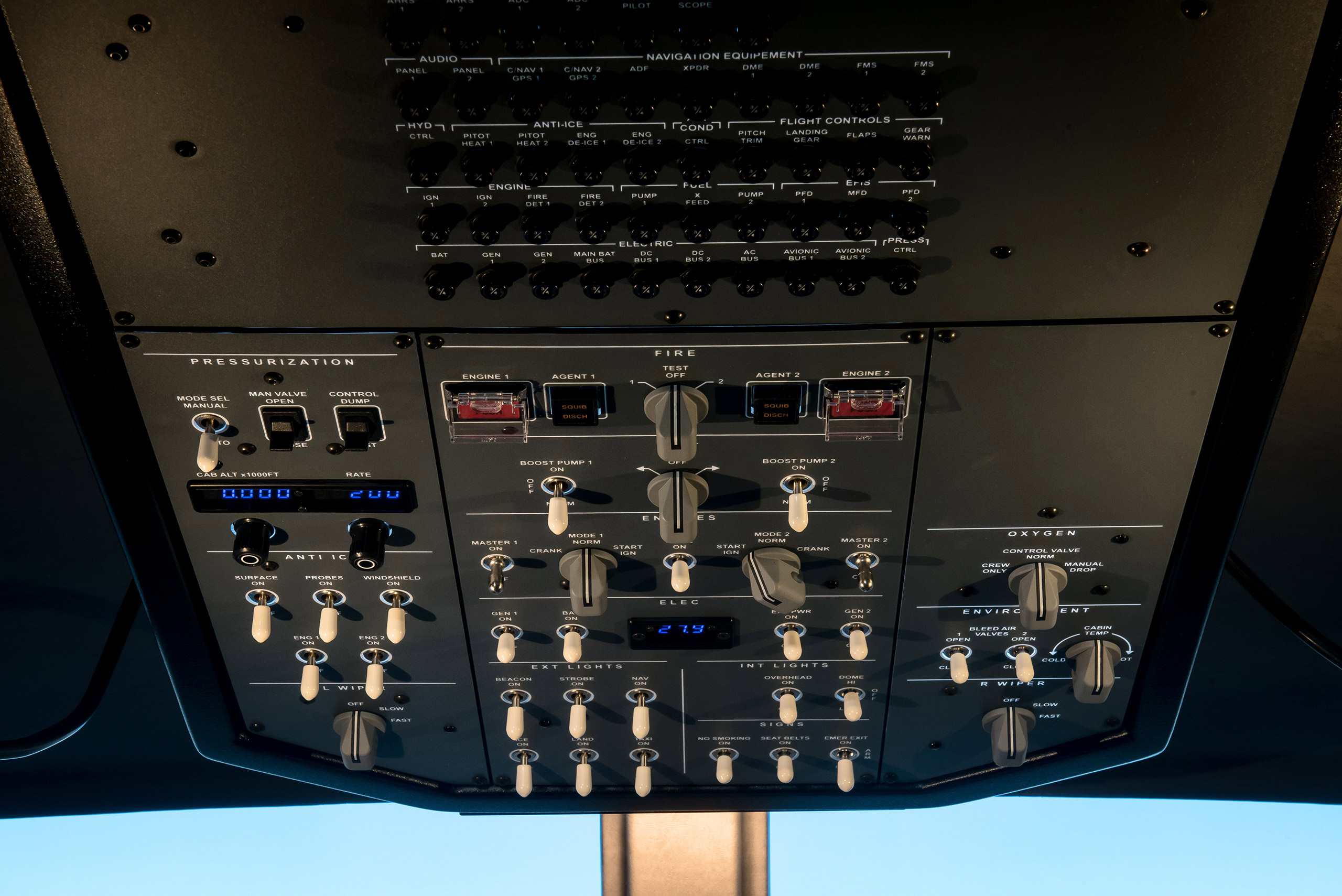

7Overhead

The overhead includes controllers for aircraft systems such as anti-ice, engines, fuel, oxygen, fire protection, pressurisation, etc.
All mandatory aircraft systems for normal/
abnormal/emergency procedures are integrated.

8Breakers Panel

Fully functional panels with 47 breakers for every aircraft system. System failures including breakers can be triggered on the IOS.

9Clipboard holder

Useful for checklists or procedure charts. Reading light provides good readability in dark environment. iPad holder optional.

10Tablet Holder

New products now come with two tablet holders. Their spring loading design makes them easy to load and unload user’s tablet.

11Smoke machine

The Cabin Smoke integrated system allows the instructor to train cabin smoke exercise in the simulator. Includes two oxygen masks.
Required for MCC.

12Nose wheel steering

Provides nose wheel directional control on ground for medium turboprop and medium jet. Landing gear control unit computes nose wheel deflection according to current aircraft taxiing speed.


Total
Immersion

Discover a unique immersion and flight training experience

Our visual system offers optimal performance including outstanding accuracy and real time rendering and response. Together, this provides the pilot with a maximum immersion experience

Flexibility

Adaptable to all customers or authority needs

INCREASED REALISM & CUSTOMIZATION

  • Jeppesen™ Database
  • Your own 3D detailed airport with your own buildings, aircraft, logos, …
  • Library of 120+ 3D detailed airports available

ALSIM VFR-VS

High definition image generator system

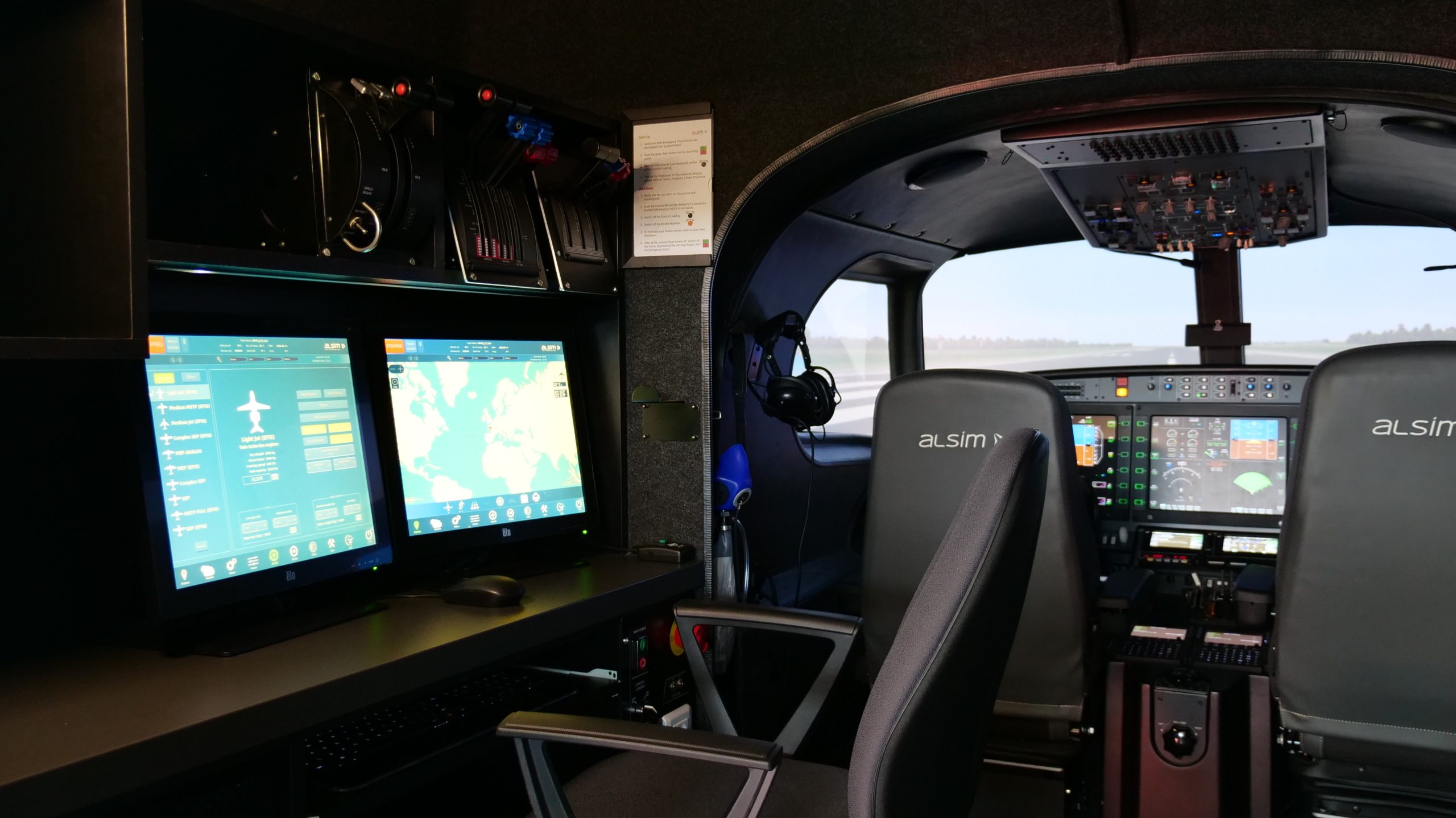

Instructor Station

ALSIM designed its instructor operating system for ease of use and with the instructor’s comfort in mind. A perfect complement to the flight trainer and an indispensable assistant for the instructor.

Hardware

  • Enclosed instructor station
  • 2 large touch screens
  • Color laser printer
  • Headset
  • Start-up panel
  • Emergency stop buttons (x2)

ALSIM IOS

As the software interface is so easy to use, advanced computer skills are not required to provide excellent training.

Trafiic

Main map

Main map

Approach map

Weather – Wind

Weather – Clouds

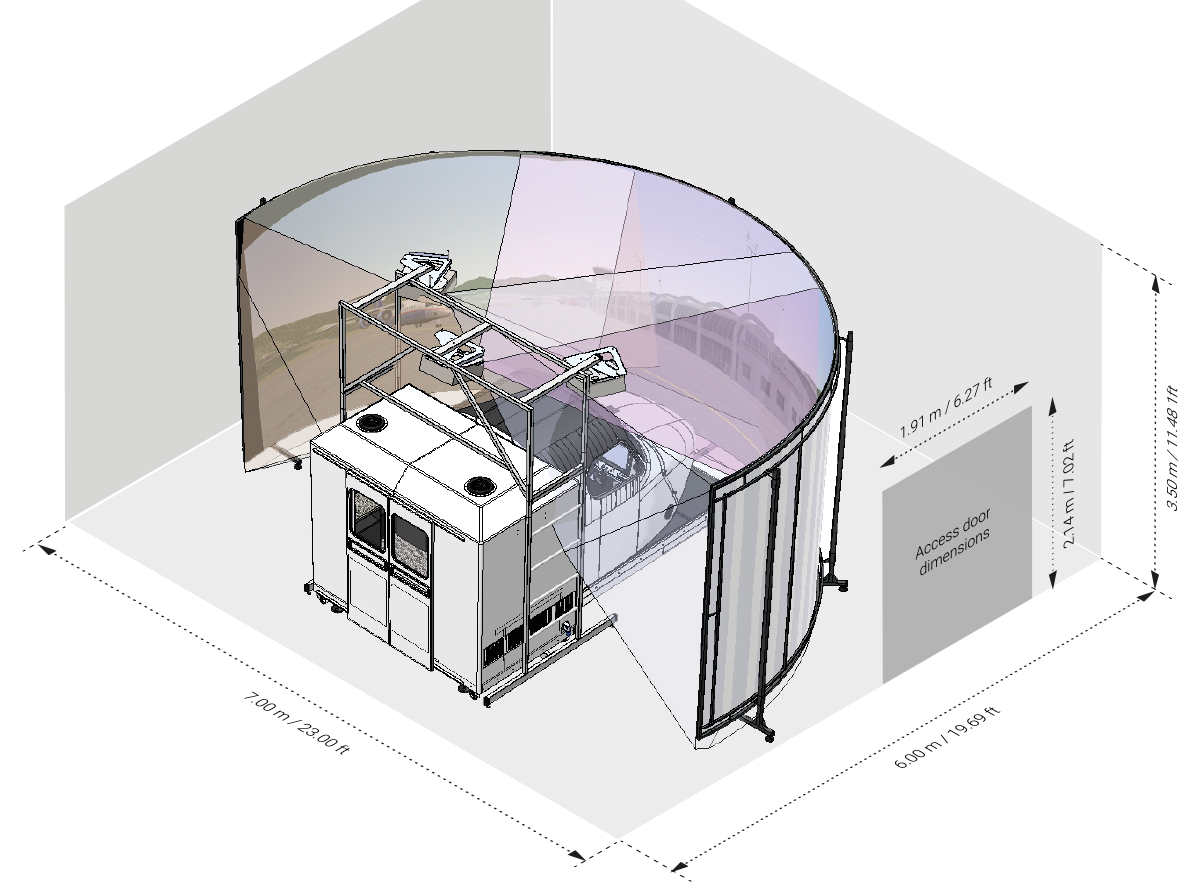

Installation

Dimensions for the ALSIM ALX

The installation is performed by ALSIM technicians. You and your team will receive the installation requirements questionnaire in advance and will send this back to our team for analysis. This will ensure that all is foreseen and well prepared before the installation.

Visual system
dimensions

Room width
5.20 m 17.00 ft

Room length
5.80 m 19.00 ft

Room height
2.90 m 9.50 ft

Access door dimensions

Door width
1.91 m 6.20 ft

Door height
2.14 m 7.00 ft
