alSR Compact

A new range of Cirrus Aircraft SR-series training devices

The ALSIM ALSR COMPACT is a new streamlined SR-series Advanced Aviation Training Device (AATD) and is a replica of the Cirrus Aviation SR20 G6 aircraft.

Benefits

Genuine Hardware

Fully featured cockpit Cirrus Perspective+™ Garmin®

Control loading

Spring loaded

Instructor station

Remote IOS

Visual System

55” Flatscreen (3 TV optional available)

CAPS

Cirrus Airframe Parachute System® (CAPS®) Simulation

100% Certified

FAA (AATD)

Take action
& Request a demo

-->

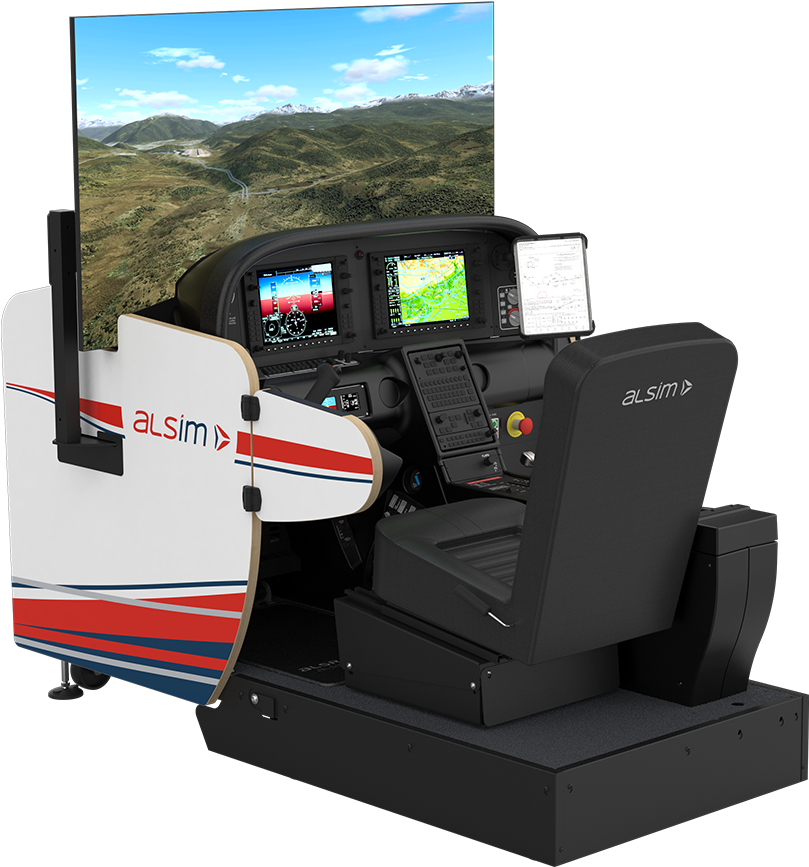

Setup

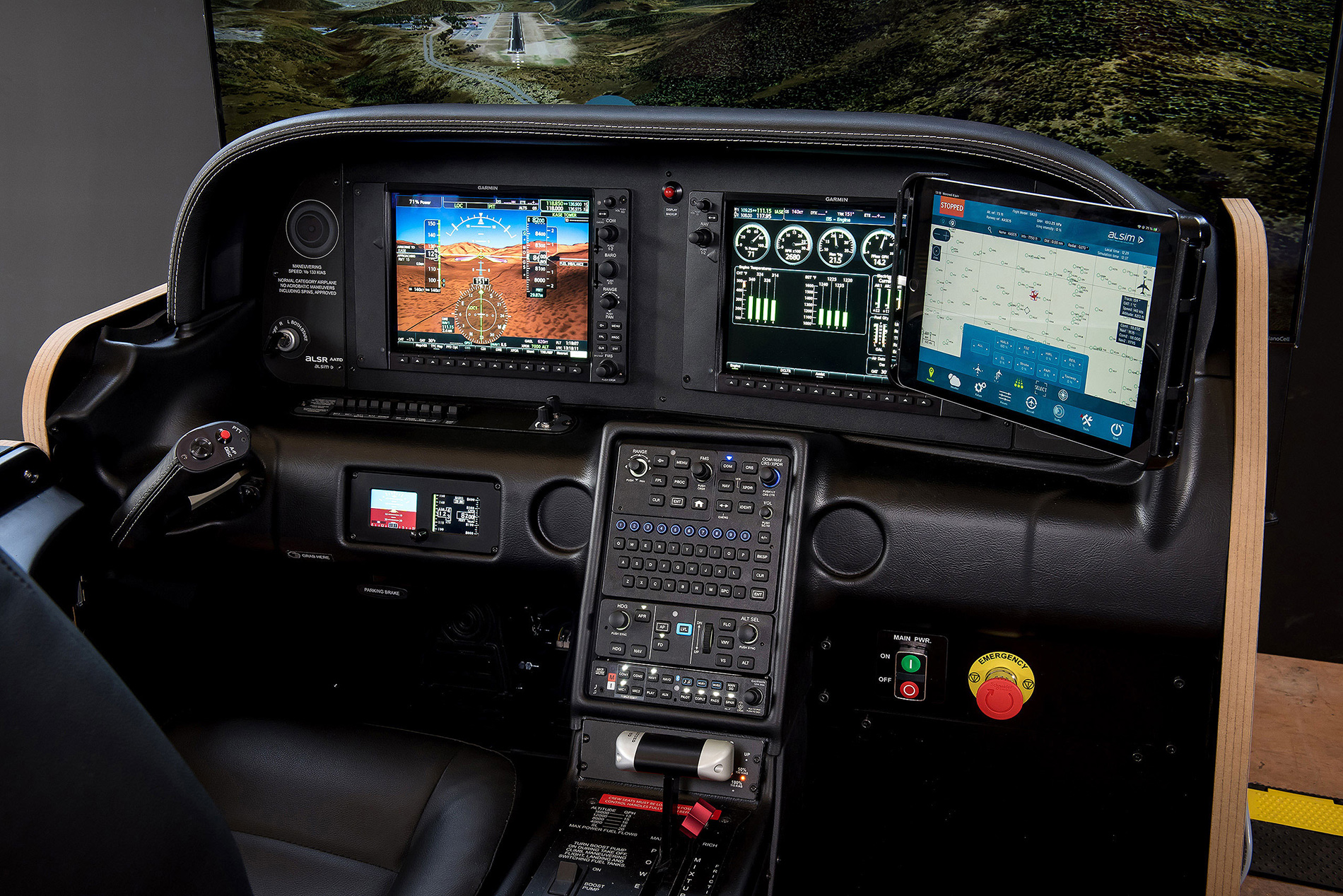

The ALSR COMPACT is equipped with a real Garmin© Perspective + and has a small form factor designed for space-constrained environments.

1Garmin Perspective+
2Standby EFIS MD302 replica
3Side Yoke and Rudder Controls
4Parking Brake
5Flaps Control / Position Indicator
6Cockpit Switch Panels
7Start/Ignition Key Switch
81 seat
9Tablet Holder
10Emergency stop button
11Full panoramic TV system [Optional]
12CAPS
+

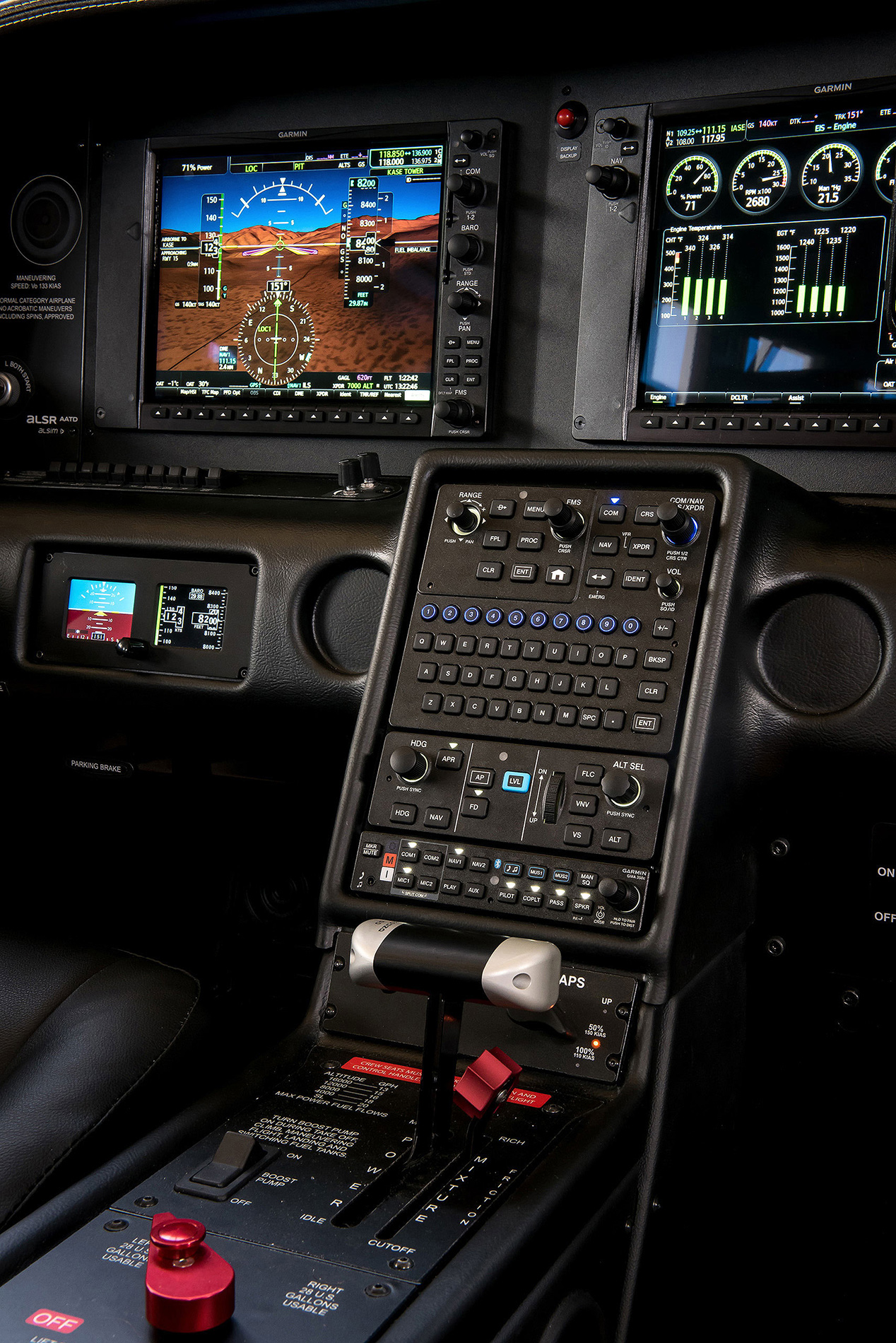

1Garmin Perspective+

  •  GDU1050A® with original Garmin Software
  • AL GMC707 AFCS Mode Controller Replica
  • AL GMA350C – Audio Panel Replica
  • AL GCU479 – QWERTY Keyboard Replica

2Standby EFIS MD302 replica

3Side Yoke and Rudder Controls

4Parking Brake

5Flaps Control / Position Indicator

6Cockpit Switch Panels

7Start/Ignition Key Switch

81 seat

9Tablet Holder

10Emergency stop button

11Full panoramic TV system [Optional]

3 TV 55″

12CAPS

Parachute deployment and fall simulation

TESTIMONIAL

We tested the multiple Cirrus related flight simulators on the market and the ALSIM ALSR Compact was the all around winner for us. Having the actual components which make up the Cirrus Perspective+ Avionics Suite in the Cirrus is truly the difference

Chad Russell

the Director of Flight Operations

Aero Atlanta

Request a demo
Take a test-flight

-->

Available Cirrus Aircraft flight models

Cirrus Aircraft SR20

Cirrus Aircraft SR22

Cirrus Aircraft SR22T

Need to train on
multiple flight models?

ALSIM has the ultimate solution:
Every ALSR Series simulator can be ordered with optional equipment and software to switch between configurations within a few minutes.

ALSR G7

The ALSIM ALSR G7 simulator is equipped with the original Perspective Touch+ avionics.

Experience the sensation of sitting in your aircraft with Alsim. Utilizing Cirrus’s original drawings, Alsim has faithfully replicated the G7 flight deck.

ALSR G7

INSTALLATION

Dimensions for the ALSIM ALSR COMPACT

The device is delivered in pre-assembled kit that can be easily self-installed and ready-to-fly in only a couple of hours.

ACCESS DOOR DIMENSIONS

The access door from outside the building to the simulator room should be (including intermediate doors or corridor):
Door width: 0,914 m / 36″ inch

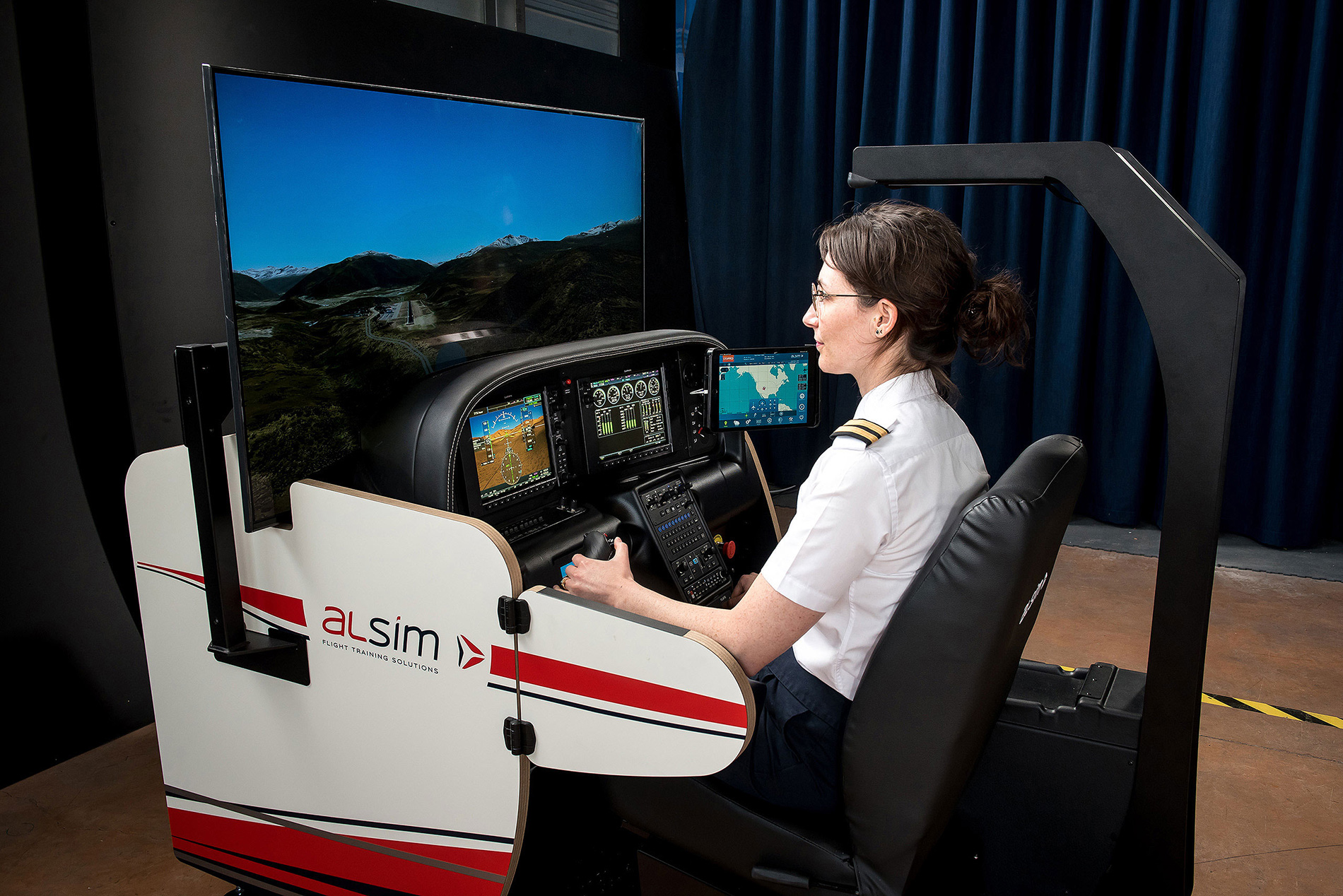

Single Screen

Device width
1,26 m 4.12 ft

Device length
1,77 m 5.82 ft

Device height
1,57 m 5.16 ft

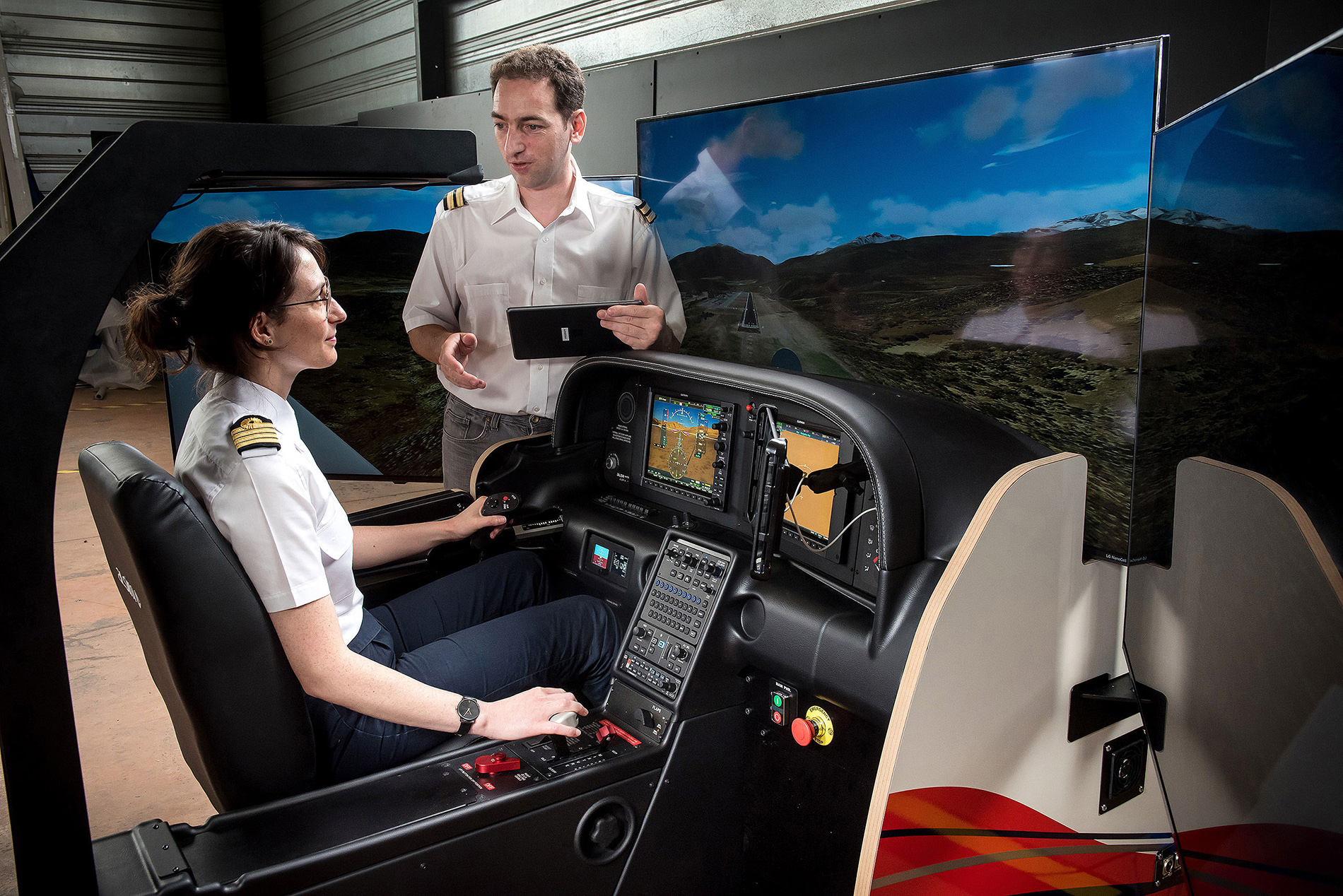

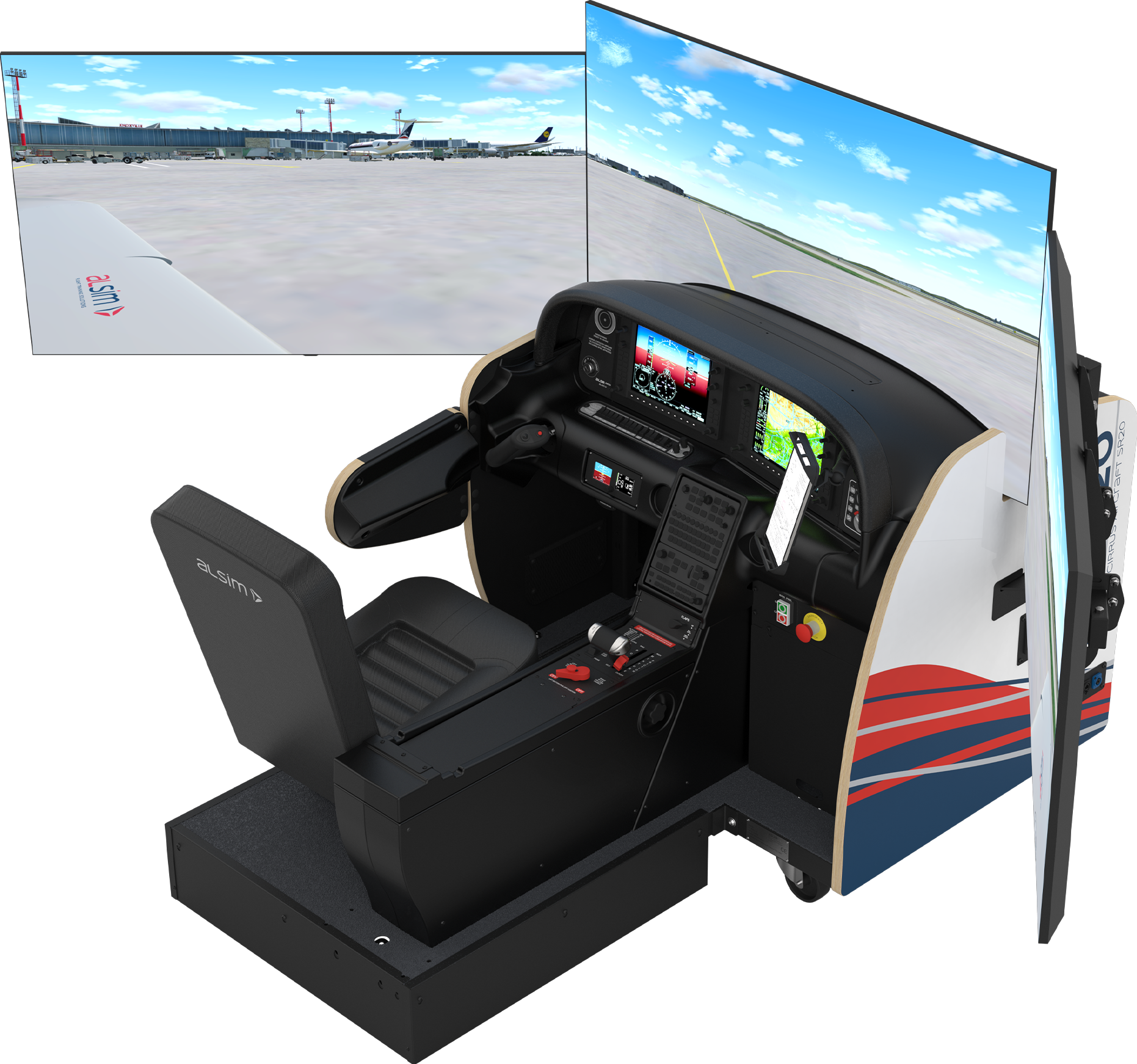

Tripple Screen

Device width
2,93 m 9.60 ft

Device length
1,77 m 5.82 ft

Device height
1,57 m 5.16 ft

Information, drawings and pictures shown for this simulator are indicative. Configuration and technical features are subject to change without prior notice. If the installation site does not meet the recommended requirements, the installation will be subject to an additional study and quotation.
