al250
The right device
for your PPL, CPL
& IR/ME training needs

The AL250 provides an unrivalled immersion on a small footprint.
With up to 3 flight models and a seamless FOV of 250° x 49° you won’t find any better device for your budget.
An optional Evolution Contract ensures that you are always up to date for your training.

Virtual Visit

Virtually experience the AL250

Explore the Cockpit / Enhance your experience with a VR Headset or VR Cardboard

AL250
Product Evolution

Our development process is designed on an open platform, giving us the flexibility to evolve and branch out from the original blueprint.

Our R&D teams work hand in hand with service teams and
customers to bring about a non-stop evolution of training features.

The result is software and hardware which keep up with the times
and mean you can retrofit your virtual fleet at the drop of a hat.

Testimonial

“We chose the AL250 because it’s LPV/PBN approved which is, according to the new EASA regulation for Instrument Training (IR), a mandatory requirement. The second important factor for us is that the aircraft models provided with the AL250, can be easily changed, with no required hardware changes, as this switch is only software based. Which means the simulator’s instructor can propose analogue or glass-cockpit panels, depending on the student’s specific training needs.”

Hans Nerlinger

Senior General Manager

Fly in Spain, Spain

Certification

Available certifications for your field of training

EASA (FNPT II)

FAA (AATD)

TC (FTD 2 – IPC)

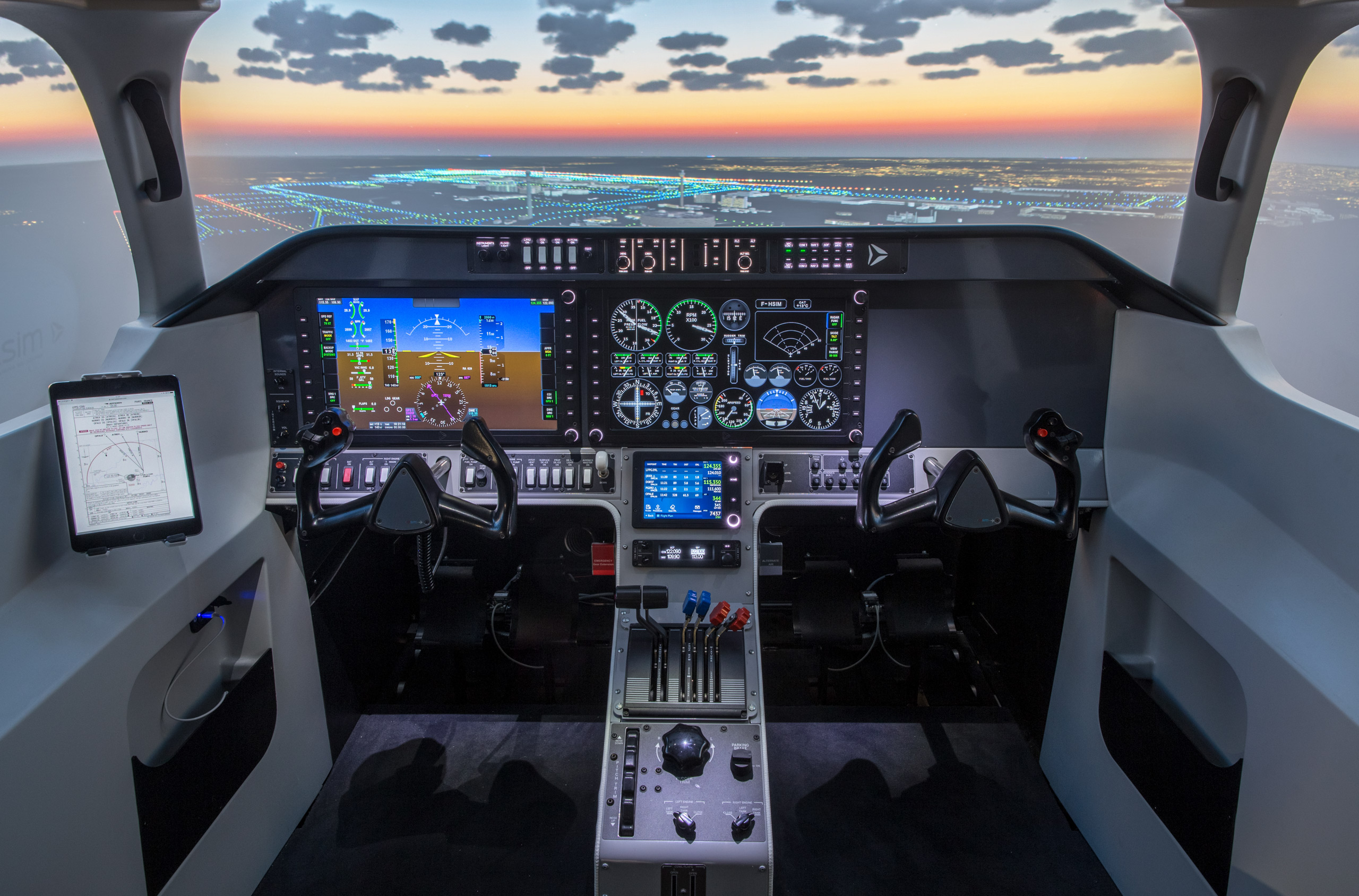

Cockpit

Discover the design of a cockpit which caters for SEP and MEP aircraft environments.

1Instrument Panel
2ALSIM Avionics / GPS
3Force feedback yoke & Seats
4Autopilot
5De-ice Panel
6Lights
7Breakers Panel
8Trim
9Visual System
10Air circulation system
11Power quadrant / Throttles
12USB Plug
13iPad / Clipboard holder
14Audio panel
+

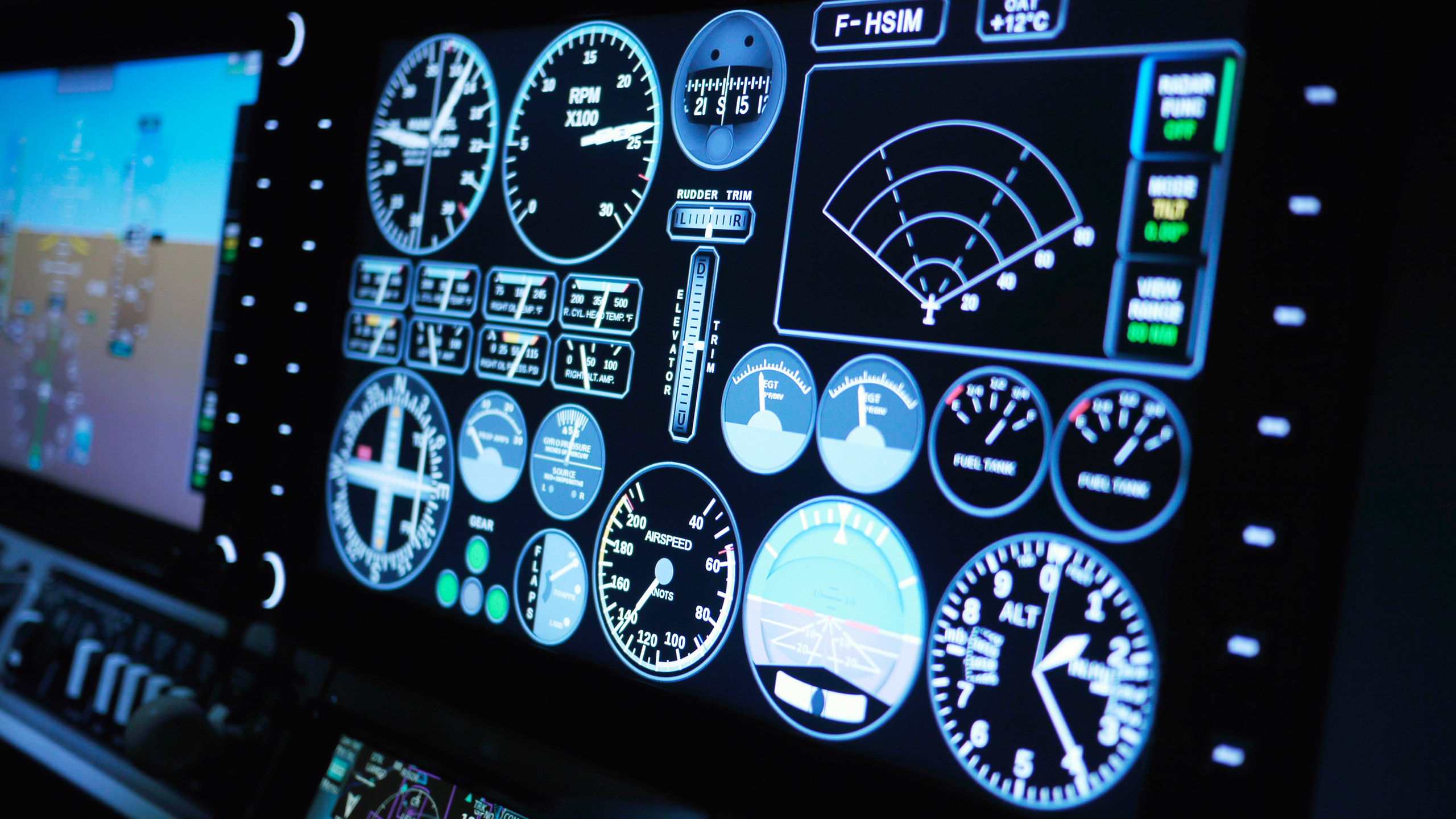

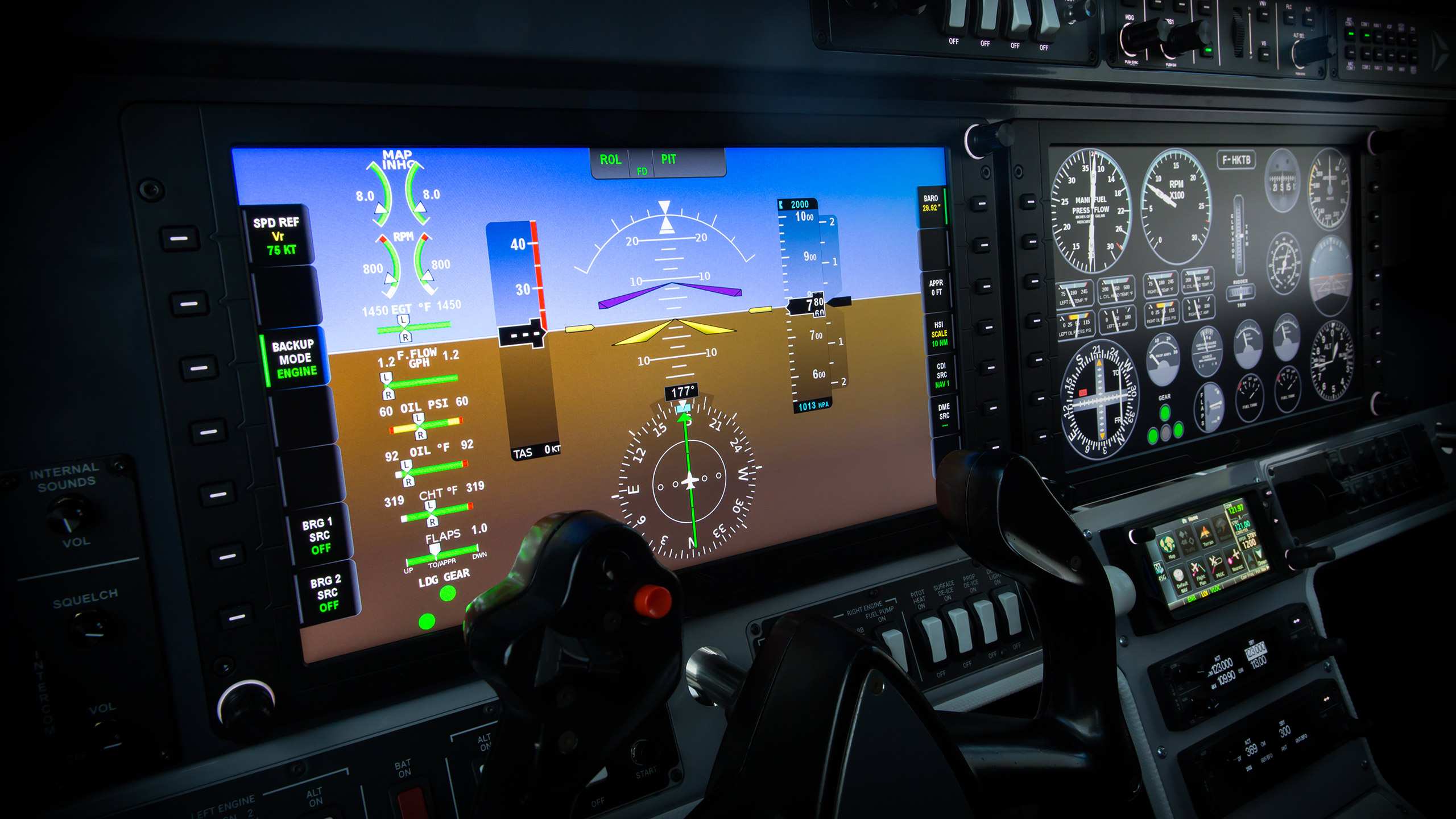

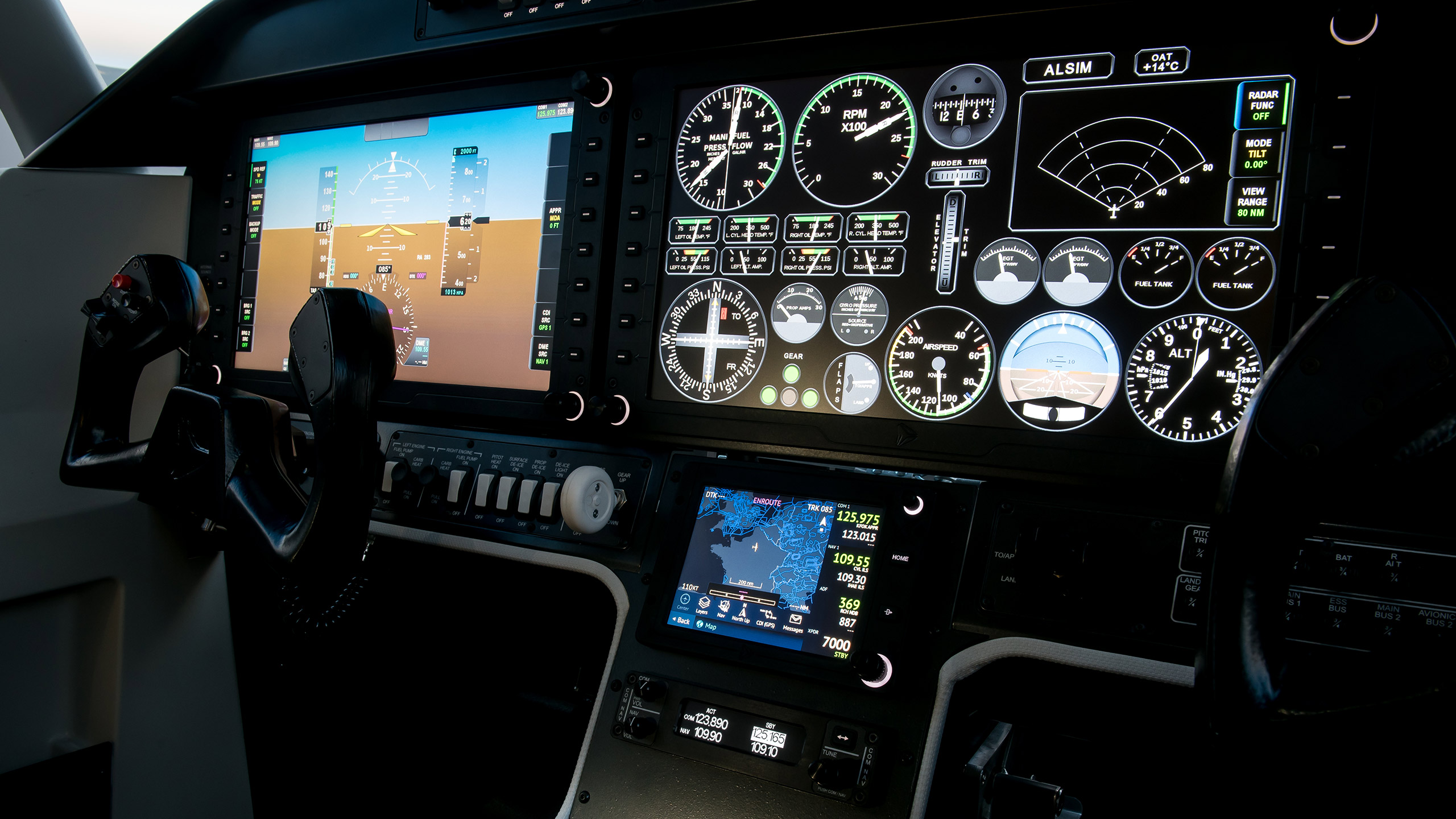

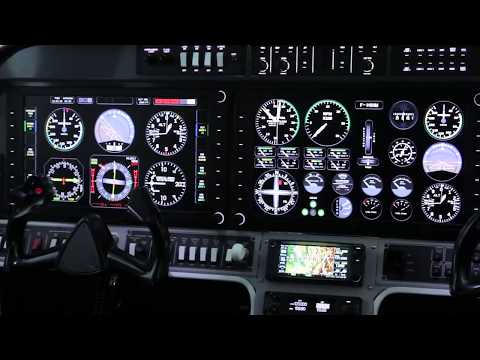

1Instrument Panel

SEP

  • Analog
  • Glass / EFIS
  • Complex Analog (VPRU)
  • Complex Glass / EFIS (VPRU)

MEP

  • Analog
  • Glass / EFIS

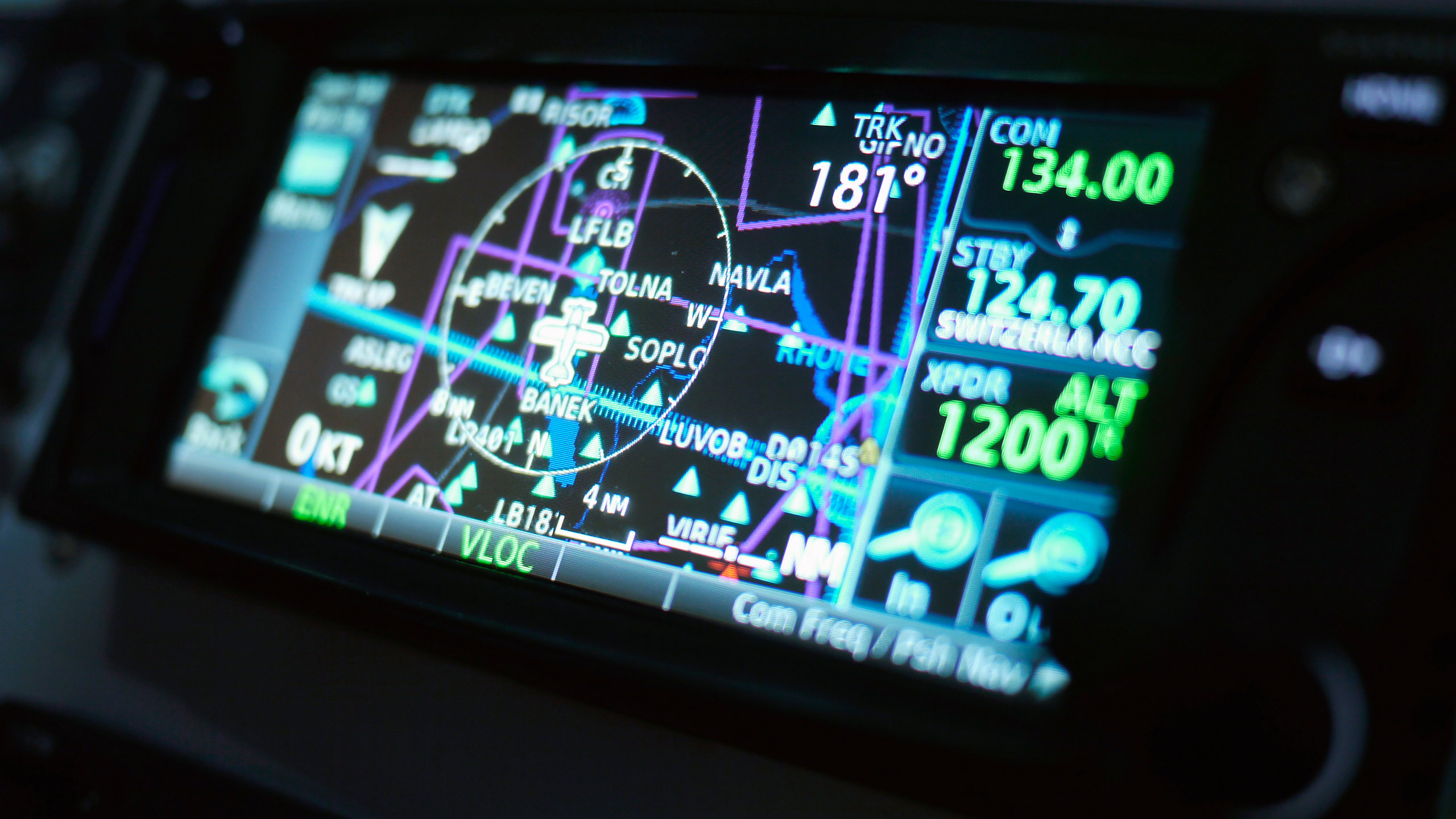

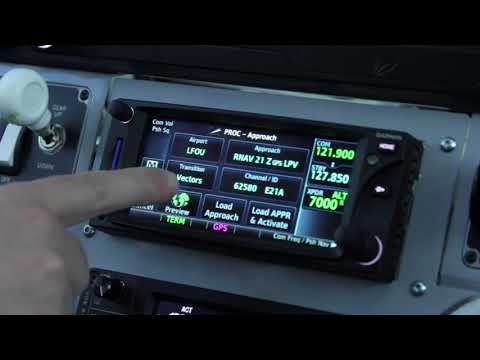

2ALSIM Avionics / GPS

Standard ALSIM Avionic Suite:

  • 1 ALSIM GPS/NAV/COM
    with WAAS/SBAS/LPV
  • 1 ALSIM generic NAV/COM module

Optional configuration:

  • 1 real Garmin® GTN650®
  • 1 additional ADF module
  • 1 additional NAV/COM unit

Optional systems:

  • Weather radar
  • Traffic Advisory System (TAS)
    Both only available with GLASS configuration

3Force feedback yoke & Seats

Yoke & rudder / pilot & co-pilot side

  • 3 axis flight controls
  • 3 axis electrical control loading

Seats

  • 2 seats

4Autopilot

ALSIM 2 axis autopilot

  • Heading (HDG)
  • Navigation (NAV, LOC/GS, GNSS)
  • Vertical Speed Hold (VS)
  • Flight Level Change (FLC)
  • Altitude Hold (ALT)

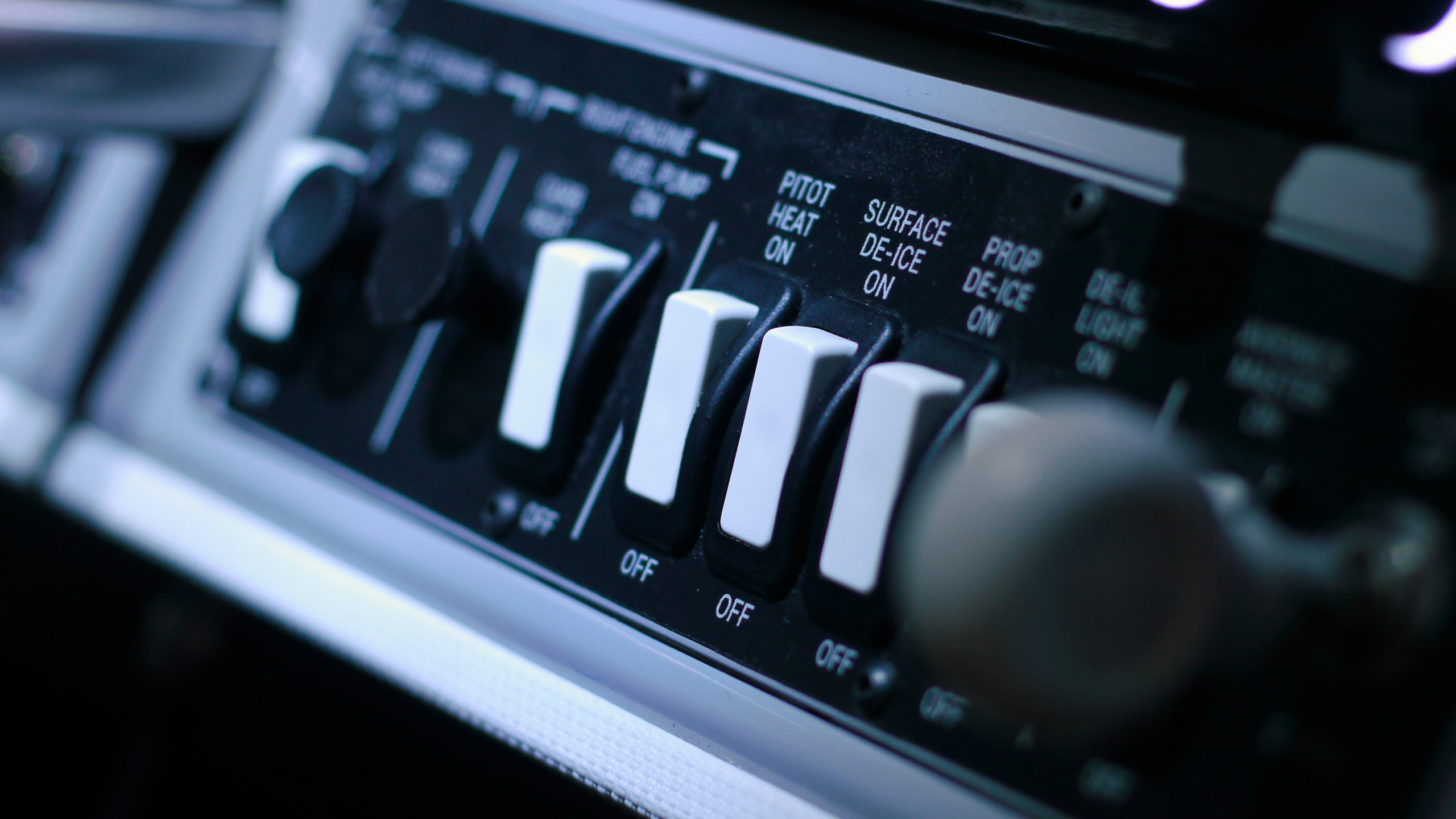

5De-ice Panel

ALSIM De-Ice System

  • Pitot Heat
  • Surface De-Ice
  • Prop De-ice

6Lights

  • Airplane lights
  • Cockpit illumination

7Breakers Panel

Circuit breakers

  • Active circuit breakers

8Trim

Mechanical Trim

  • Two-axis – Pitch and Yaw

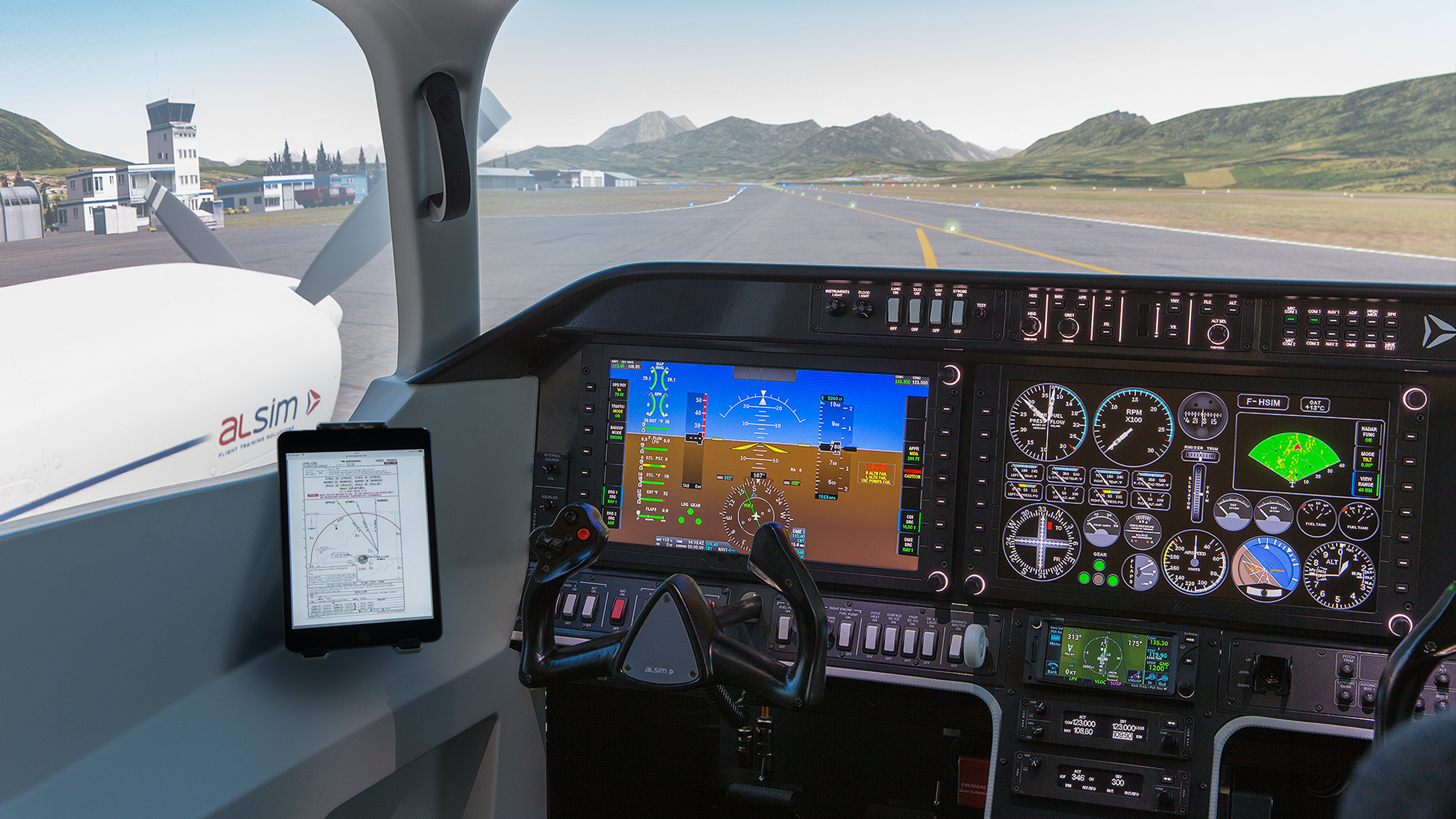

9Visual System

ALSIM VFR-VF

  • 250° x 49° panoramic VFR-VS – HD projectors

10Air circulation system

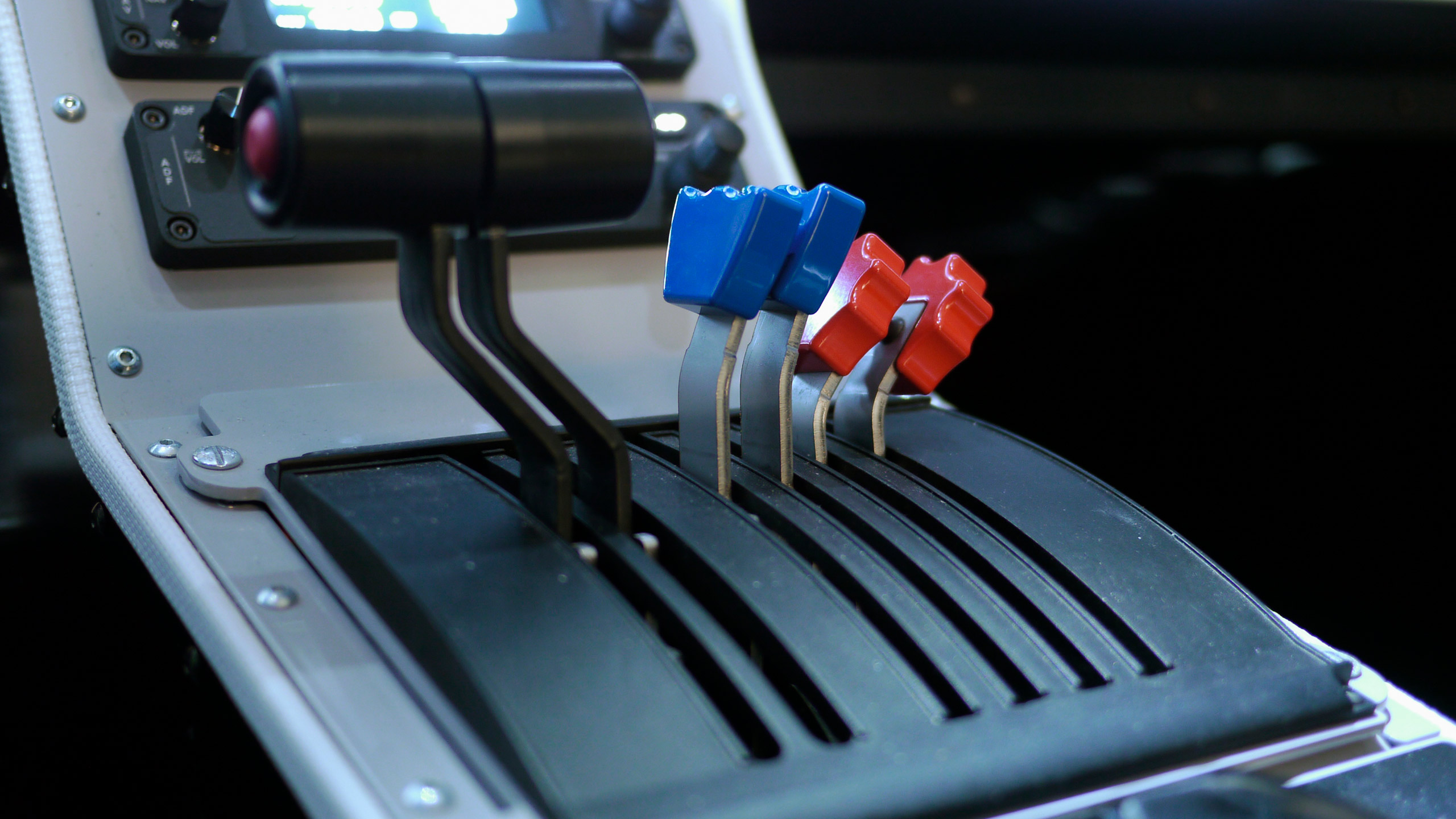

11Power quadrant / Throttles

12USB Plug

13iPad / Clipboard holder

14Audio panel

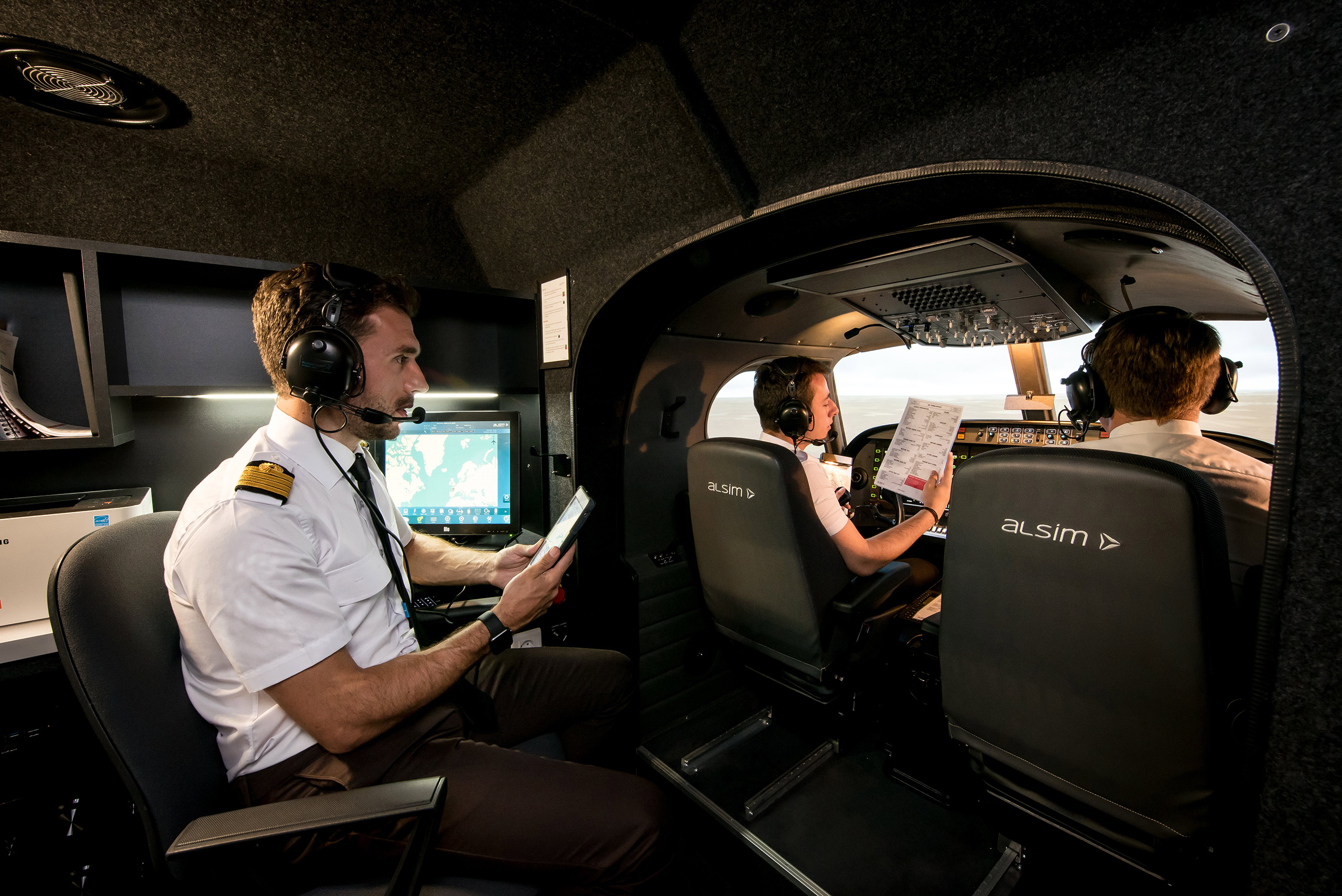

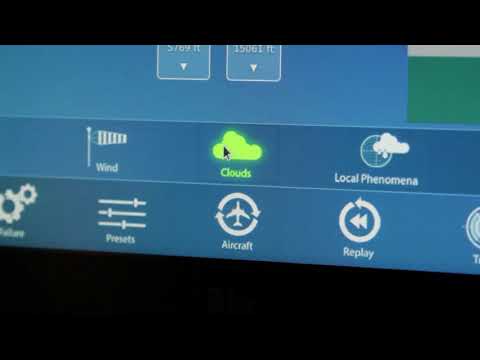

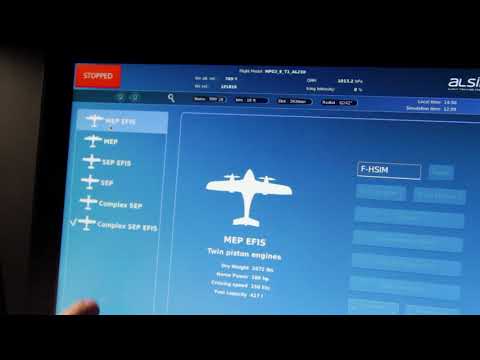

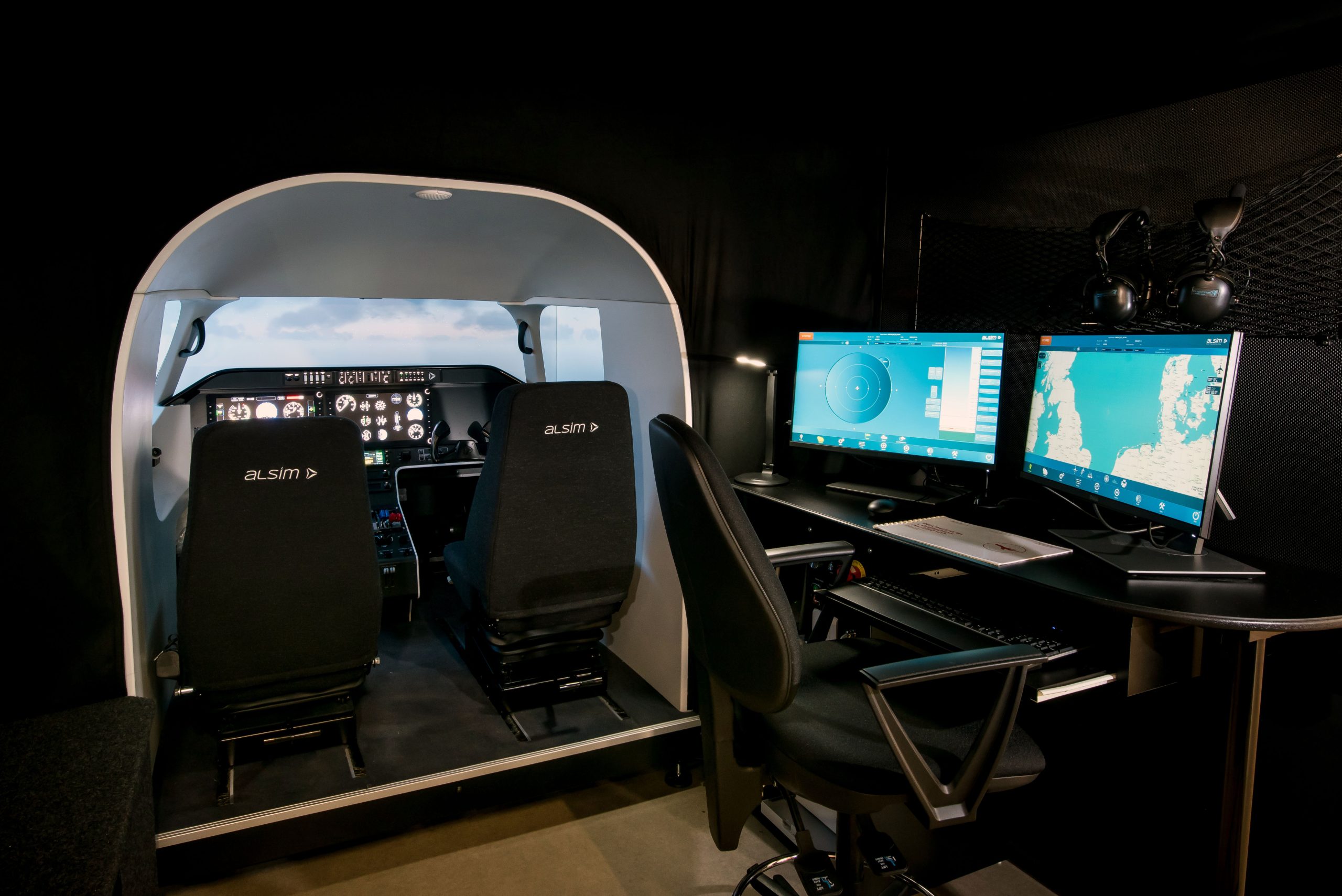

Instructor Station

ALSIM designed its instructor operating system for ease of use and with the instructor’s comfort in mind. A perfect complement to the flight trainer and an indispensable assistant for the instructor.

Hardware

  • Enclosed instructor station
  • 2 large touch screens
  • Headset
  • Start-up panel
  • Emergency stop buttons (x2)

Total
Immersion

Discover a unique immersion and flight training experience

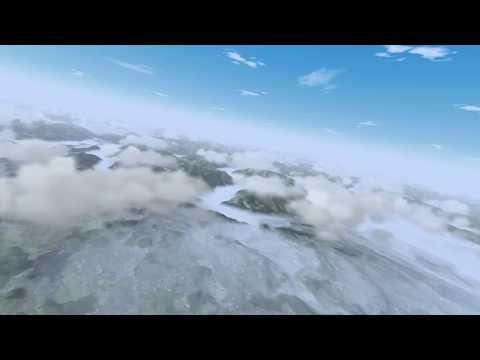

Each ALSIM simulator is provided with a VFR-VS image generator entirely designed and produced by ALSIM.

Our visual system offers optimal performance including outstanding accuracy and real time rendering and response. Together, this provides the pilot with a maximum immersion experience

Flexibility

Adaptable to all customers or authority needs

INCREASED REALISM & CUSTOMIZATION

  • Jeppesen™ Database
  • Your own 3D detailed airport with your own specific taxiways, ATC Tower, approach lights, runway lights, buildings, aircraft, logos, …
  • Library of 300+ 3D detailed airports available

ALSIM VFR-VS

High definition image generator system

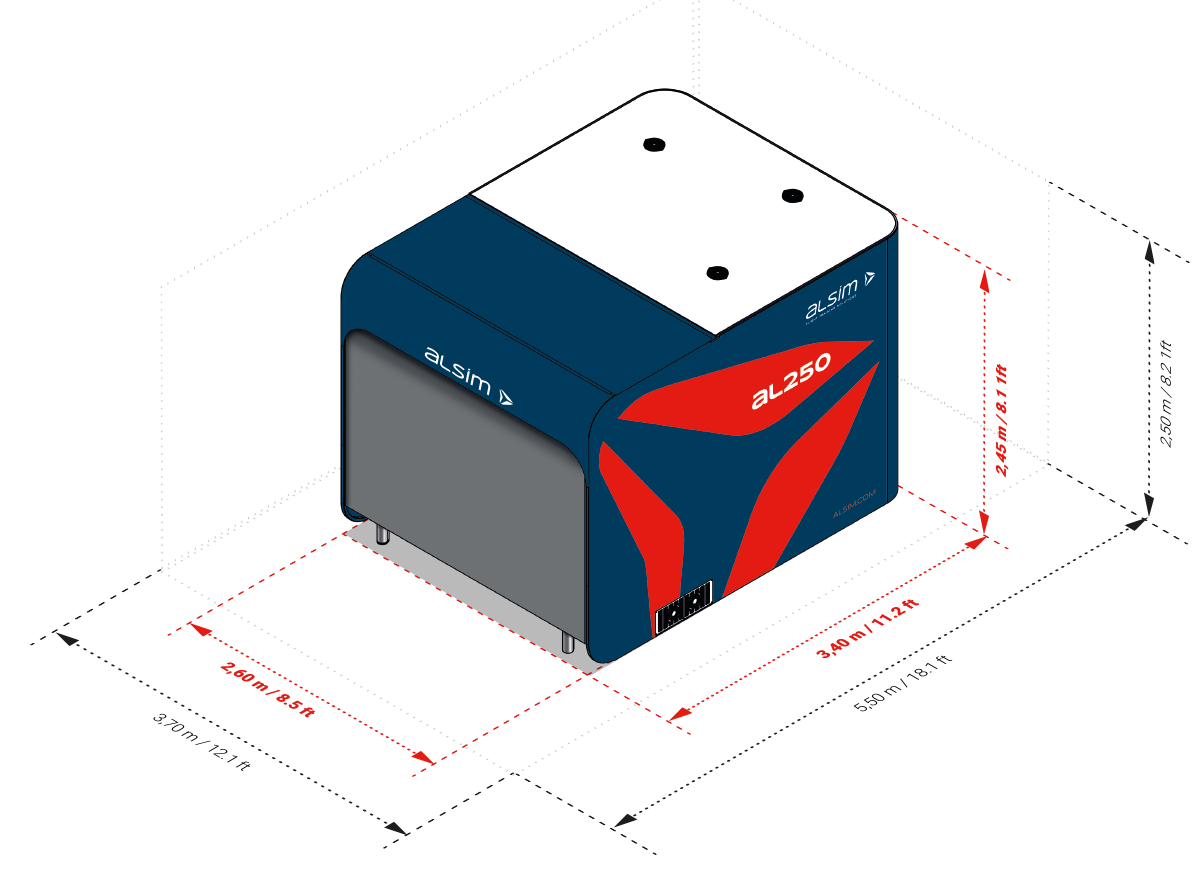

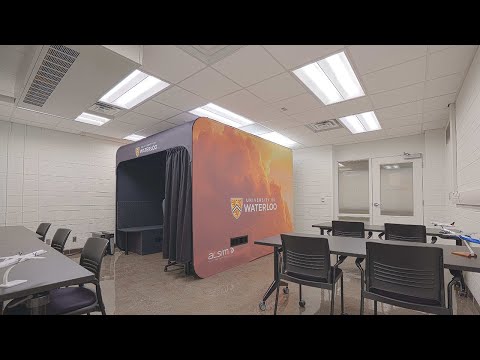

Installation

Dimensions for the ALSIM AL250

The installation is performed by ALSIM technicians. You and your team will receive the installation requirements questionnaire in advance and will send this back to our team for analysis. This will ensure that all is foreseen and well prepared before the installation.

Recommended Room
dimensions

Room width
3.70 m 12.1 ft

Room length
5.50 m 18.1 ft

Room height
2.50 m 8.2 ft

Access door dimensions

Door width
1.70 m 5.6 ft

Door height
2.10 m 7.0 ft

AL250 Technical Specifications

Setup description.
For more details, please contact us.

Entry level setup
  • 2 seats
  • Dual 3 axis flight controls (yoke & rudder)
  • Dual 3 axis electrical control loading (yoke & rudder)
  • Mobile Instructor Station (tablet not included)
  • 2 axis autopilot
  • 1 ALSIM GPS/NAV/COM/ADF with WAAS/SBAS/LPV
  • 2 General Aviation headsets
  • Cockpit air circulation system
  • Instructor Station – 2 large graphical touch screens
Options
  • 1 real GarminTM GTN® 650Xi (additional ADF module)
  • Additional NAV/COM unit
  • Simulator exterior / shell
  • Engineering Pack
  • 2 UPS units (Uninterruptible power supply)
