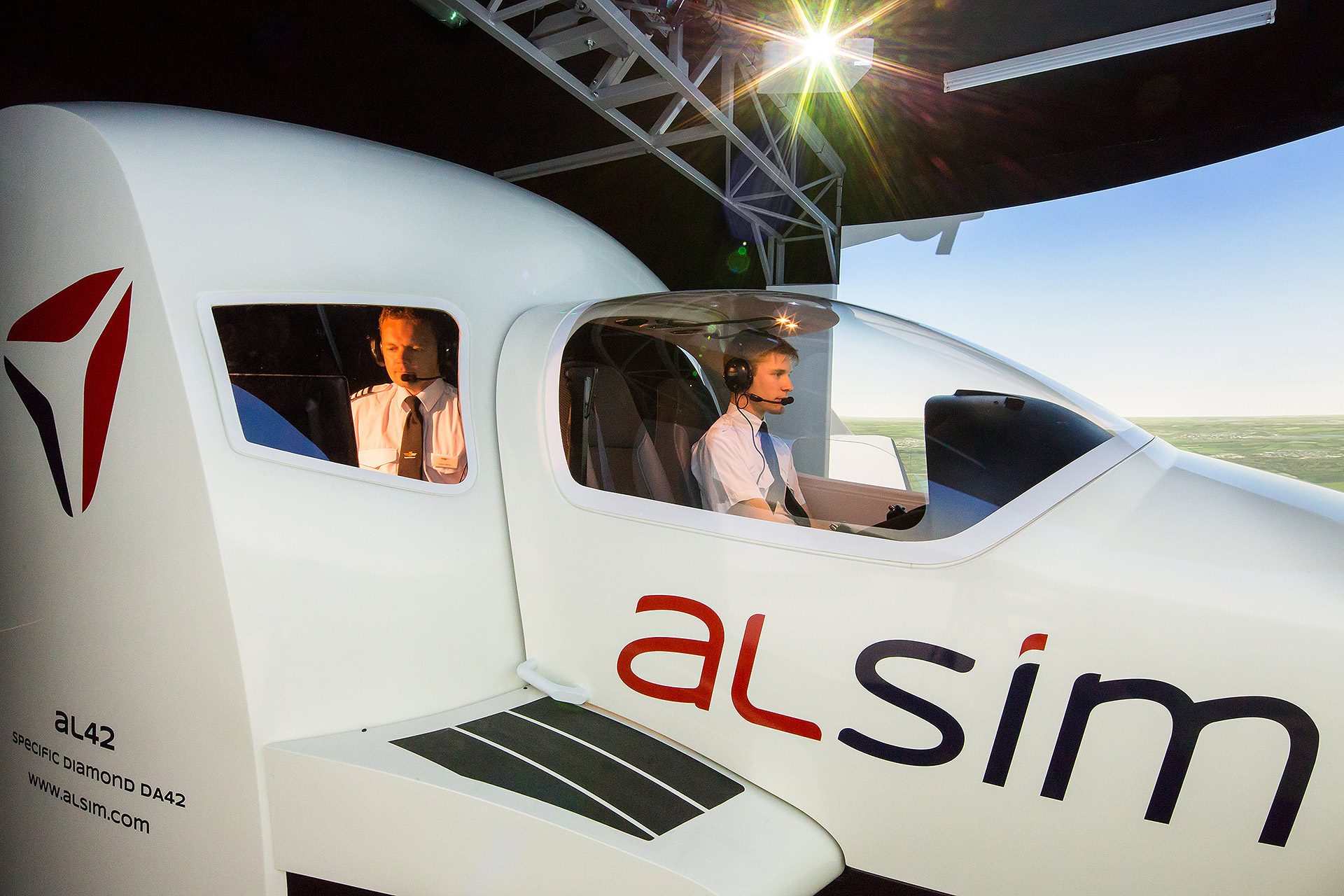

Exact replica of
the Diamond DA42-VI

This simulator adds a type specific Diamond
DA42-VI with Austro Engine, original Garmin™ G1000® NXi
and Garmin™ GFC700™ Digital autopilot to your fleet.

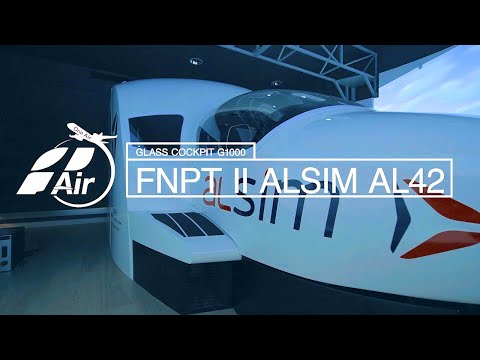

Virtual Visit

Virtually experience the AL42

Explore the Cockpit / Enhance your experience with a VR Headset or VR Cardboard

ALSIM System Evolution

Simulators need to follow the aircraft and training standards.
So does your training. With our Evolution Programs we make the investment on an ALSIM solution an excellent choice for sustainability.

Our R&D teams work hand in hand with our customers to ensure that training features evolve continuously.

This helps us provide software and hardware that keeps up with the times and means you can retrofit and upgrade your virtual fleet at the drop of a hat.

Advanced & sophisticated training

“We want our student pilots to receive the most advanced training possible. Along with interactive learning aids, virtual reality and neuro training, they will also benefit from the most advanced simulator technology as they prepare for their future career. The AL42 from ALSIM offers sophisticated training capabilities and replicates the aircraft our students fly, making it the obvious choice for our latest acquisition.”

Andy McFarlane

CEO

Leading Edge Aviation Ltd., UK

Certification

Available certifications
for your field of training

EASA (FNPT II)

FAA (FTD 5)

TC (FTD 5)

CAAC (FTD 5)

Cockpit

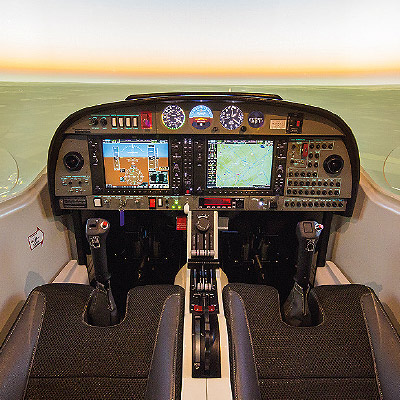

The ALSIM AL42 cockpit is an exact replica of
the DA42 aircraft so that students can familiarize
themselves with the aircraft’s specifications.

1G1000® NXi avionics
2Backup Instrument Renderings
3De-icing
4Breakers
5GFC™ 700 Digital Autopilot
6Pitch trim
7Control Loading
8Seats
9Air-conditioning system
+

1G1000® NXi avionics

Real G1000® NXi avionics with fully functional ADC, AHRS, GMA, and database capabilities.

2Backup Instrument Renderings

High quality rendering of mechanical instruments, with dimmable display.

3De-icing

Fully integrated de-ice system with fluid tank management and de-ice effect on aircraft performances.

4Breakers

All breakers can be controlled manually or by the instructor from IOS. Each one is connected to aircraft systems.

5GFC™ 700 Digital Autopilot

Fully integrated with the G1000® glass flight deck, the GFC 700 is an advanced, AHRS-based automatic flight control system.

6Pitch trim

Mechanical pitch trim wheel with servo drive to electronic pitch trim.

7Control Loading

New generation of control loading which provides more remote controls and better maintenance access. Adjustable rudder also available.

8Seats

The seats reflect the adjustments to the DA42 aircraft seating, and provide two seats for the pilot and co-pilot.

9Air-conditioning system

System ready to be connected to provide more comfort to the instructor and students.


Instructor Station

ALSIM designed its instructor operating system for ease of use and with the instructor’s comfort in mind. A perfect complement to the flight trainer and an indispensable assistant for the instructor.

Hardware

  • Enclosed instructor station
  • 2 large touch screens
  • Color laser printer
  • Headset
  • Start-up panel
  • Emergency stop buttons (x2)

Total
Immersion

Discover a unique immersion and flight training experience

Each ALSIM simulator is provided with a VFR-VS image generator entirely designed and produced by ALSIM.

Our visual system offers optimal performance including outstanding accuracy and real time rendering and response. Together, this provides the pilot with a maximum immersion experience

Flexibility

Adaptable to all customers or authority needs

Increased Realism & Customization

  • Jeppesen™ Database
  • Your own 3D detailed airport with your own specific taxiways, ATC Tower, approach lights, runway lights, buildings, aircraft, logos, …
  • Library of 300+ 3D detailed airports available

Installation

Installation dimensions for the ALSIM AL42

The installation is performed by ALSIM technicians. You and your team will receive the installation requirements questionnaire in advance and will send this back to our team for analysis. This will ensure that all is foreseen and well prepared before the installation.

Visual system
dimensions

Room width
5.43 m 17.82 ft

Room length
6.68 m 21.92 ft

Room height
2.90 m 9.51 ft

Access door dimensions

Door width
1.91 m 6.27 ft

Door height
2.14 m 7.02 ft
